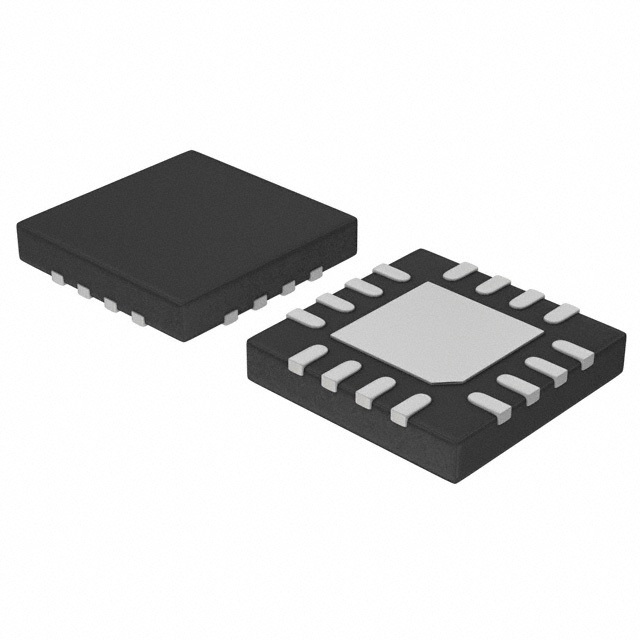

LM26420Q1XSQX/NOPB

SKU: 150867

Manufacturer: Texas Instruments

Conv DC-DC 3V to 5.5V Synchronous Step Down Dual-Out 0.8V to 4.5V 2A/2A Automotive 16-Pin WQFN EP T/R

3240 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	Yes
PPAP	Yes
Type	Synchronous Step Down
Output Type	Adjustable
Switching Frequency (kHz)	2200(Typ)
Switching Regulator	Yes
Number of Outputs	2
Output Voltage (V)	0.8 to 4.5
Maximum Output Current (A)	2
Minimum Input Voltage (V)	3
Maximum Input Voltage (V)	5.5
Operating Supply Voltage (V)	3 to 5.5
Typical Switch Current (A)	3.3
Typical Quiescent Current (uA)	4700
Efficiency (%)	93
Maximum ESD Protection Voltage (kV)	2@HBM
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Automotive
Packing Method	Tape and Reel
Pin Count	16
Standard Package Method	QFN
Original Package	WQFN EP
Terminal Form	Surface Mount
Package Height	0.75(Max)
Package Length	4.1(Max)
Package Width	4.1(Max)
PCB changed	16
