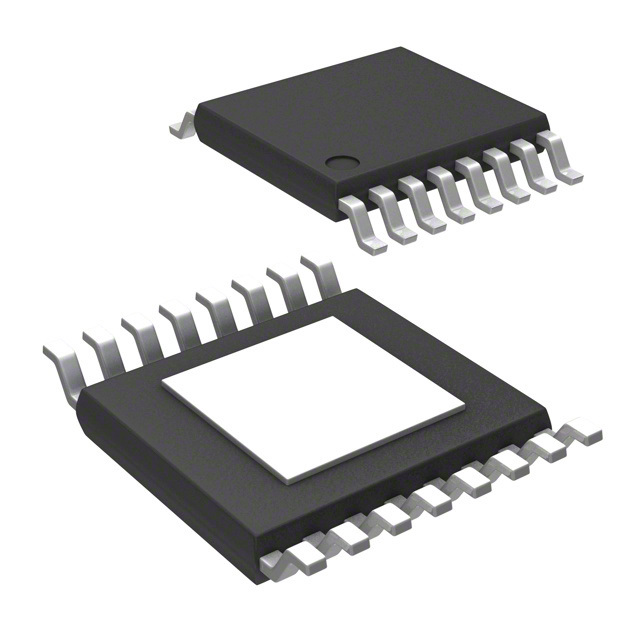

LM26001MXA

SKU: 12197

Manufacturer: Texas Instruments

Conv DC-DC 3V to 38V Synchronous Step Down Single-Out 1.25V to 35V 1.5A 16-Pin HTSSOP EP Rail

3410 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Synchronous Step Down
Output Type	Adjustable
Switching Frequency (kHz)	150 to 500
Switching Regulator	Yes
Number of Outputs	1
Output Voltage (V)	1.25 to 35
Maximum Output Current (A)	1.5
Minimum Input Voltage (V)	3
Maximum Input Voltage (V)	38
Operating Supply Voltage (V)	3 to 38
Typical Quiescent Current (uA)	38
Line Regulation	0.001%/V(Typ)
Load Regulation	0.07%(Typ)
Efficiency (%)	93
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Rail
Original Package	HTSSOP EP
Pin Count	16
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	5.1(Max)
Package Width	4.5(Max)
PCB changed	16
