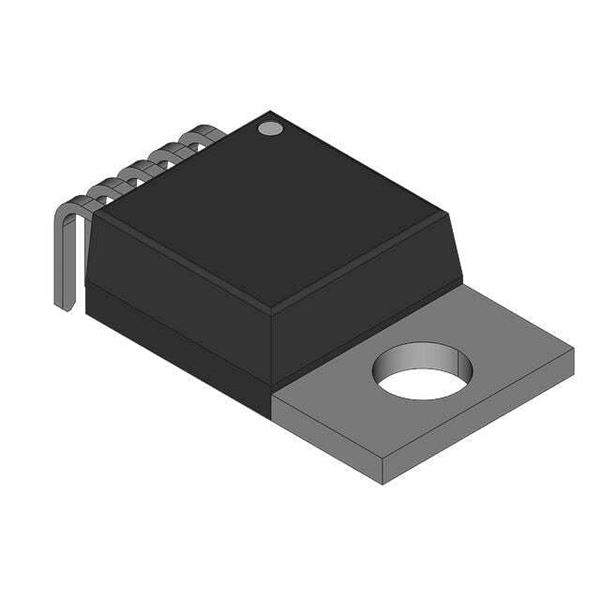

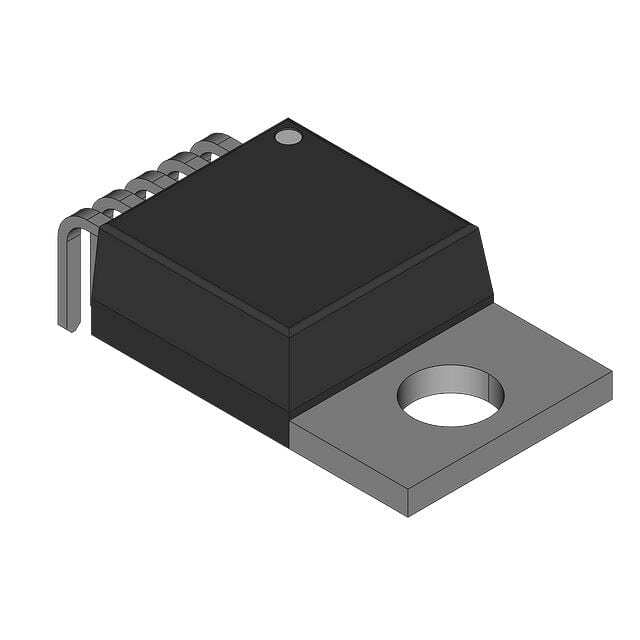

LM2585T-5.0/NOPB

SKU: 125401

Manufacturer: Texas Instruments

Conv DC-DC 4V to 40V Step Up Single-Out 5V 3A 5-Pin(5+Tab) TO-220 Tube

1650 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Step Up
Output Type	Fixed
Switching Frequency (kHz)	115
Switching Regulator	Yes
Number of Outputs	1
Output Voltage (V)	5
Maximum Output Current (A)	3
Minimum Input Voltage (V)	4
Maximum Input Voltage (V)	40
Operating Supply Voltage (V)	4 to 40
Typical Quiescent Current (uA)	11000
Line Regulation	50mV
Load Regulation	50mV
Efficiency (%)	80(Typ)
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tube
Pin Count	5
Standard Package Method	TO-220
Original Package	TO-220
Terminal Form	Through Hole
Package Height	8.64
Package Length	10.16
Package Width	4.57
PCB changed	5
Tab	Tab
