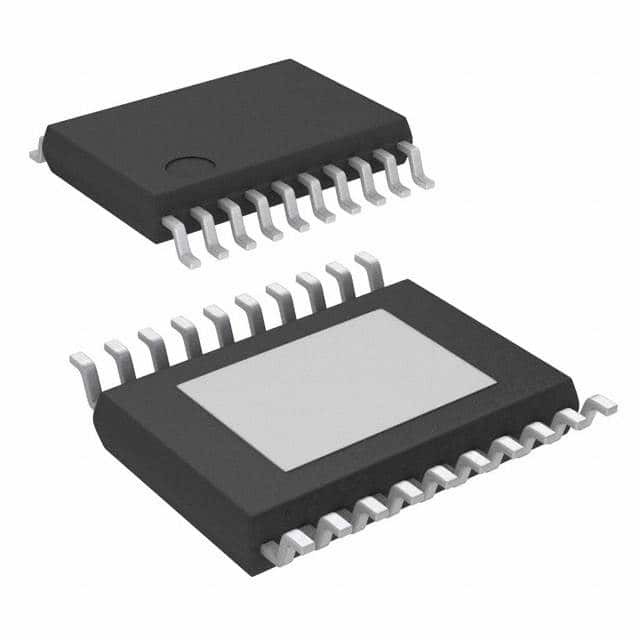

LM25118MHX/NOPB

SKU: 26300

Manufacturer: Texas Instruments

DC/DC Cntrlr Single-OUT Step Down/Step Up 575kHz 20-Pin HTSSOP EP T/R

28950 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Number of Outputs	1
Topology	Step Down
Output Voltage (V)	1.23 to 38
Maximum Switching Frequency (kHz)	500
Minimum Input Voltage (V)	3
Maximum Input Voltage (V)	42
Operating Supply Voltage (V)	3 to 42
Minimum Switching Frequency (kHz)	50
Typical Switching Frequency (kHz)	515
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Original Package	HTSSOP EP
Pin Count	20
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	6.6(Max)
Package Width	4.5(Max)
PCB changed	20
