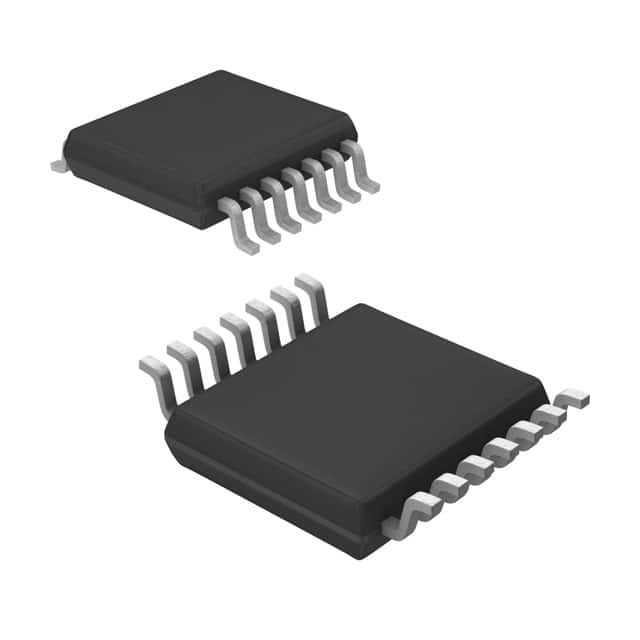

LM25037QMTX/NOPB

SKU: 87066

Manufacturer: Texas Instruments

Resonant Controllers 1.2A 222kHz/578kHz Automotive 16-Pin TSSOP T/R

1410 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	Yes
PPAP	Yes
Type	Resonant Controllers
Control Method	Current/Voltage
Topology	Flyback
Number of PWM Outputs	2
Switching Frequency (kHz)	222
Maximum Duty Cycle (%)	0(Min)
Rise Time (ns)	17
Output Current (mA)	1200
Fall Time (ns)	18
Operating Supply Voltage (V)	8 to 14
Operating Supply Voltage-Min (V)	8
Operating Supply Voltage-Max (V)	14
On/Off Pin	No
Synchronous Pin	No
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Automotive
Packing Method	Tape and Reel
Pin Count	16
Standard Package Method	SOP
Original Package	TSSOP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	5.1(Max)
Package Width	4.5(Max)
PCB changed	16
