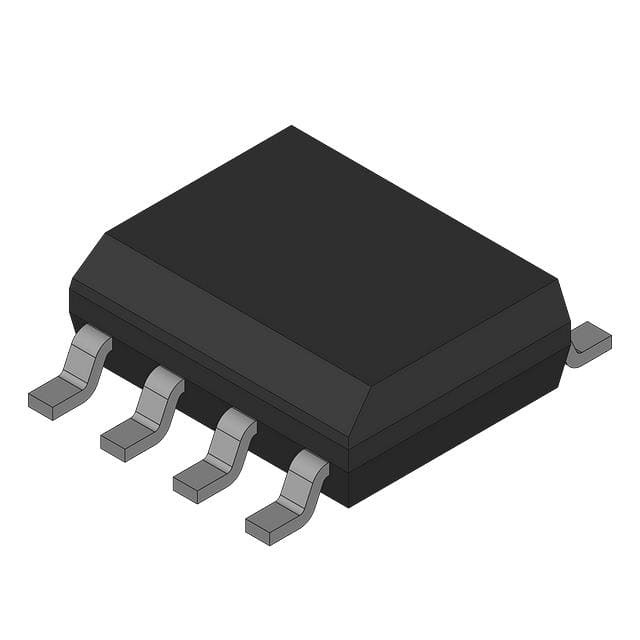

LM211DR

SKU: 97056

Manufacturer: Texas Instruments

Comparator Single ±15V/30V 8-Pin SOIC T/R

118090 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Manufacturer Type	Voltage Comparator
Number of Channels per Chip	1
Rail to Rail	No
Process Technology	Bipolar
Typical Response Time (us)	0.165
Typical Response Time Range (us)	0.05 to 0.5
Maximum Propagation Delay Time (ns)	115(Typ)
Output Type	Open Collector
Operating Supply Voltage-Max (V)	±15
Maximum Input Offset Voltage (mV)	3@±15V
Minimum Single Supply Voltage (V)	3.5
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	30
Minimum Dual Supply Voltage (V)	±1.75
Typical Dual Supply Voltage (V)	±3
Maximum Dual Supply Voltage (V)	±15
Typical Voltage Gain (dB)	106.02
Typical Voltage Gain Range (dB)	90 to 110
Maximum Input Bias Current (uA)	0.1@±15V
Maximum Quiescent Current (mA)	6@15V/-5@-15V
Maximum Test Temperature (°C)	85
Minimum Test Temperature (°C)	-40
Power Supply Type	Single
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Standard Package Method	SOP
Pin Count	8
Original Package	SOIC
Terminal Form	Surface Mount
Package Height	1.5(Max)
Package Length	5(Max)
Package Width	3.98(Max)
PCB changed	8
