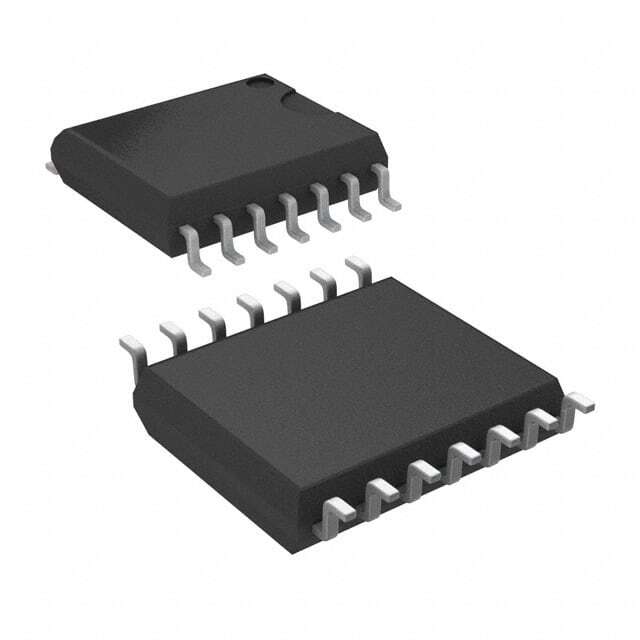

LM1877M-9

SKU: 136676

Manufacturer: Texas Instruments

Audio Amp Speaker 2-CH Stereo 1.3W Class-AB Automotive 14-Pin SOIC W Rail

430 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
Automotive	No
PPAP	No
Function	Speaker
Amplifier Type	Class-AB
THDN	0.055%@8Ohm@2W
Output Signal Type	Single
Output Type	2-Channel Stereo
Maximum Input Offset Voltage (mV)	15(Typ)
Minimum Single Supply Voltage (V)	6
Typical Single Supply Voltage (V)	9
Maximum Single Supply Voltage (V)	24
Maximum Input Bias Current (uA)	0.05(Typ)@20V
Maximum Supply Current (mA)	50@20V
Power Supply Type	Single
Typical Output Power x Channels @ Load (W)	1.3x2@8Ohm
Operating Temperature-Min	0
Operating Temperature-Max	70
Packing Method	Rail
Original Package	SOIC W
Pin Count	14
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	2.35(Max)
Package Length	9.2(Max)
Package Width	7.6(Max)
PCB changed	14
