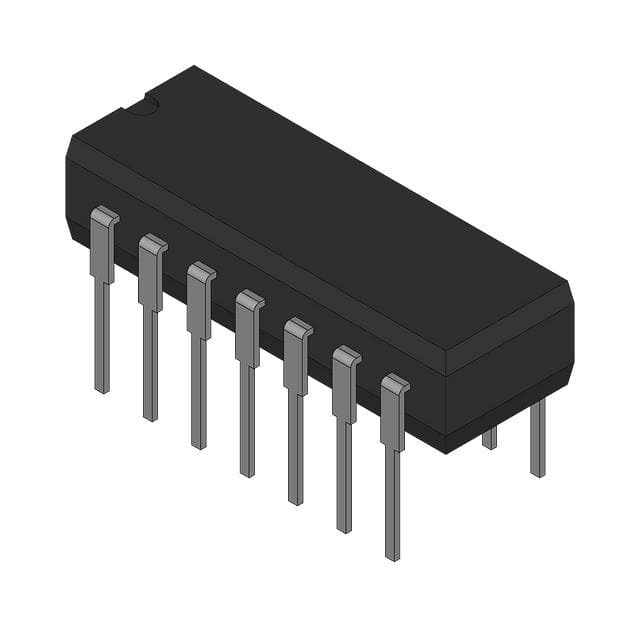

LM148J

SKU: 111223

Manufacturer: Texas Instruments

Op Amp Quad High Gain Amplifier ±18V 14-Pin CDIP Tube

12800 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	High Gain Amplifier
Manufacturer Type	High Gain Amplifier
Number of Channels per Chip	4
Maximum Input Offset Voltage (mV)	5@±15V
Minimum Dual Supply Voltage (V)	±4
Typical Dual Supply Voltage (V)	±15
Maximum Dual Supply Voltage (V)	±18
Maximum Input Offset Current (uA)	0.025@±15V
Maximum Input Bias Current (uA)	0.1@±15V
Maximum Quiescent Current (mA)	3.6@±15V
Power Supply Type	Dual
Typical Slew Rate (V/us)	0.5@±15V
Typical Input Noise Voltage Density (nV/rtHz)	60
Typical Voltage Gain (dB)	104.08
Minimum CMRR (dB)	70
Minimum CMRR Range (dB)	70 to 71
Typical Gain Bandwidth Product (MHz)	1
Shut Down Support	No
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Tube
Original Package	CDIP
Pin Count	14
Standard Package Method	DIP
Terminal Form	Through Hole
Package Height	3.56(Max)
Package Length	19.94(Max)
Package Width	7.19(Max)
PCB changed	14
