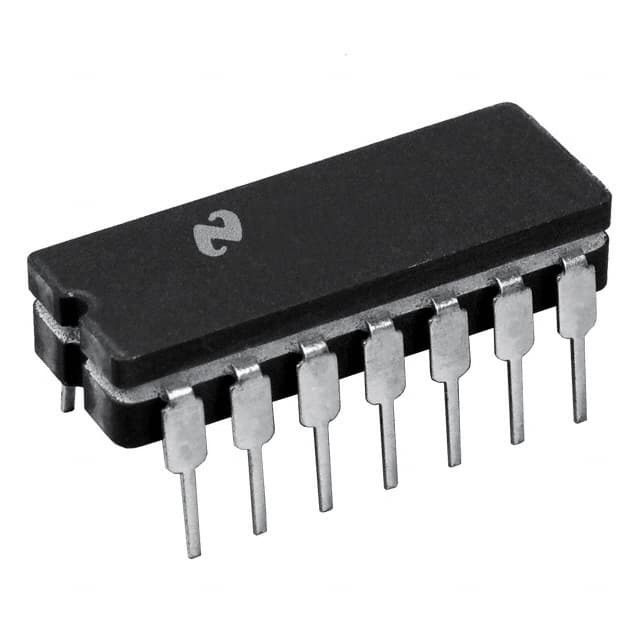

LM139J

SKU: 19307

Manufacturer: Texas Instruments

Comparator Quad R-R O/P ±15V/30V Automotive 14-Pin CDIP Tube

2140 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Manufacturer Type	Differential Comparator
Number of Channels per Chip	4
Rail to Rail	Rail to Rail Output
Process Technology	Bipolar
Typical Response Time (us)	1.3
Typical Response Time Range (us)	0.5 to 5
Maximum Propagation Delay Time (ns)	1300(Typ)
Output Type	Open Drain/Collector
Operating Supply Voltage-Max (V)	±15
Maximum Input Offset Voltage (mV)	5@30V
Minimum Single Supply Voltage (V)	2
Typical Single Supply Voltage (V)	3
Maximum Single Supply Voltage (V)	30
Minimum Dual Supply Voltage (V)	±1
Typical Dual Supply Voltage (V)	±3
Maximum Dual Supply Voltage (V)	±15
Typical Voltage Gain (dB)	106.02
Typical Voltage Gain Range (dB)	90 to 110
Maximum Input Bias Current (uA)	0.1@5V
Typical Output Current (mA)	20(Max)
Maximum Quiescent Current (mA)	2@5V
Power Supply Type	Single
Operating Temperature-Min	-55
Operating Temperature-Max	125
Supplier Temperature Grade	Military
Packing Method	Tube
Standard Package Method	DIP
Original Package	CDIP
Pin Count	14
Terminal Form	Through Hole
Package Height	3.56(Max)
Package Length	19.94(Max)
Package Width	7.62(Max)
PCB changed	14
