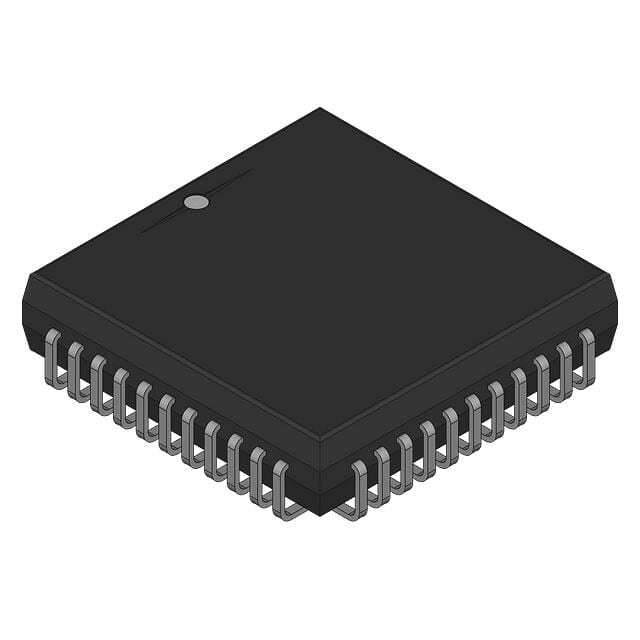

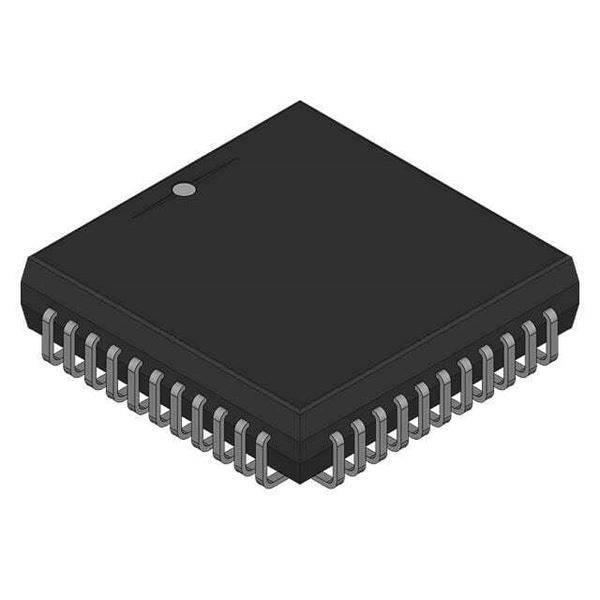

LM12458CIV

SKU: 139663

Manufacturer: Texas Instruments

8-Channel Single ADC SAR 114ksps 12-bit+Sign Parallel 44-Pin PLCC Tube

3200 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	SAR
Resolution	12bit+Sign
Number of ADCs	1
Number of Input Channels	8
Sampling Rate	114ksps
Digital Interface Type	Parallel
Input Type	Voltage
Input Signal Type	Single-Ended
Voltage Reference	Internal
Polarity of Input Voltage	Bipolar
Voltage Supply Source	Analog and Digital
Input Voltage	±5V
Minimum Single Supply Voltage (V)	3
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	5.5
Maximum Power Dissipation (mW)	30
Integral Nonlinearity Error	±1LSB
Full Scale Error	±2LSB
Signal to Noise Ratio	77.5dB(Typ)
No Missing Codes (bit)	13
Sample and Hold	Yes
Single-Ended Input	Yes
Digital Supply Support	Yes
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tube
Original Package	PLCC
Pin Count	44
Standard Package Method	LCC
Terminal Form	Surface Mount
Package Height	4.57(Max) - 0.51(Min)
Package Length	16.66(Max)
Package Width	16.66(Max)
PCB changed	44
