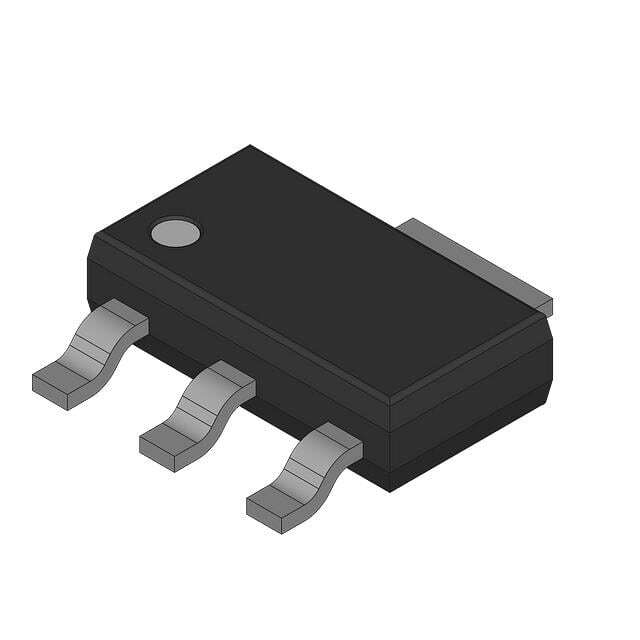

LM1117MPX-2.85/NOPB

SKU: 153822

Manufacturer: Texas Instruments

LDO Regulator Pos 2.85V 0.8A 4-Pin(3+Tab) SOT-223 T/R

2960 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Positive
Accuracy (%)	±1
Output Type	Fixed
Output Voltage (V)	2.85
Maximum Output Current (A)	0.8
Maximum Input Voltage (V)	15
Maximum Dropout Voltage @ Current (V)	1.3@800mA
Line Regulation	1mV(Typ)
Load Regulation	1mV(Typ)
Maximum Quiescent Current (mA)	10
Junction to Ambient	136°C/W(Typ)
Junction to Case	15°C/W(Typ)
Special Features	Thermal Protection
Operating Temperature-Min	0
Operating Temperature-Max	125
Packing Method	Tape and Reel
Original Package	SOT-223
Pin Count	4
Standard Package Method	SOT
Terminal Form	Surface Mount
Package Height	1.6
Package Length	6.5
Package Width	3.56
PCB changed	3
Tab	Tab
