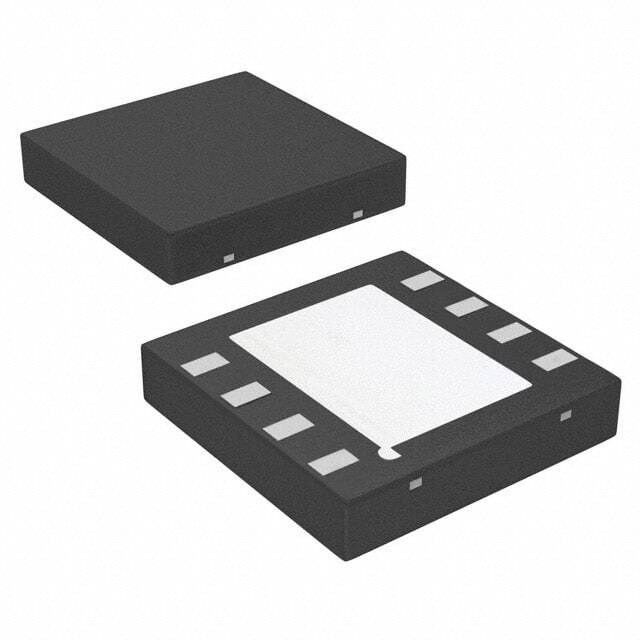

LM1117LDX-1.8

SKU: 132550

Manufacturer: Texas Instruments

LDO Regulator Pos 1.8V 0.8A 8-Pin WSON EP T/R

2510 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Unconfirmed
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Positive
Accuracy (%)	±1
Output Type	Fixed
Output Voltage (V)	1.8
Maximum Output Current (A)	0.8
Minimum Input Voltage (V)	2.6
Maximum Input Voltage (V)	15
Maximum Dropout Voltage @ Current (V)	1.2@100mA
Line Regulation	1mV(Typ)
Load Regulation	1mV(Typ)
Maximum Quiescent Current (mA)	10
Junction to Ambient	40°C/W(Typ)
Special Features	Current Limit
Operating Temperature-Min	0
Operating Temperature-Max	125
Packing Method	Tape and Reel
Original Package	WSON EP
Pin Count	8
Standard Package Method	SON
Terminal Form	Surface Mount
Package Height	0.8(Max)
Package Length	4
Package Width	4
PCB changed	8
