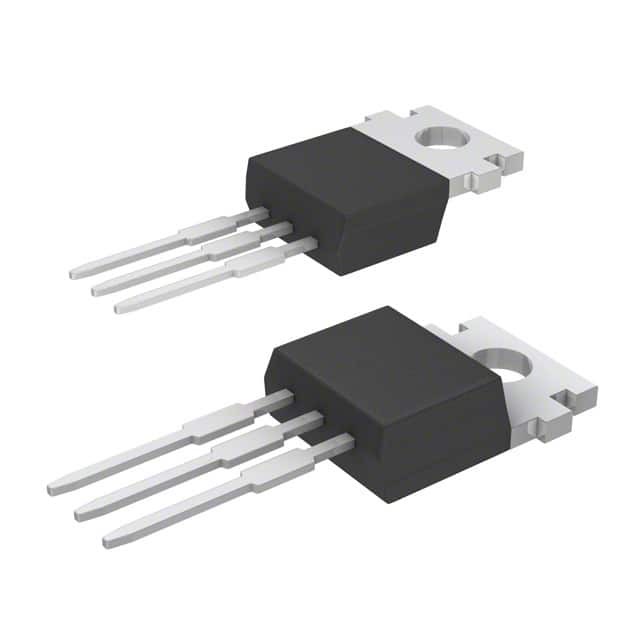

LM1085IT-3.3

SKU: 97037

Manufacturer: Texas Instruments

LDO Regulator Pos 3.3V 3A 3-Pin(3+Tab) TO-220 Rail

4840 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Positive
Output Type	Fixed
Output Voltage (V)	3.3
Maximum Output Current (A)	3
Minimum Input Voltage (V)	2.6
Maximum Input Voltage (V)	27
Maximum Dropout Voltage @ Current (V)	1.5@3A
Line Regulation	6mV
Load Regulation	15mV
Maximum Quiescent Current (mA)	10
Junction to Case	3°C/W
Special Features	Current Limit
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Automotive
Packing Method	Rail
Original Package	TO-220
Pin Count	3
Standard Package Method	TO-220
Terminal Form	Through Hole
Package Height	8.89(Max)
Package Length	10.16
Package Width	4.7(Max)
PCB changed	3
