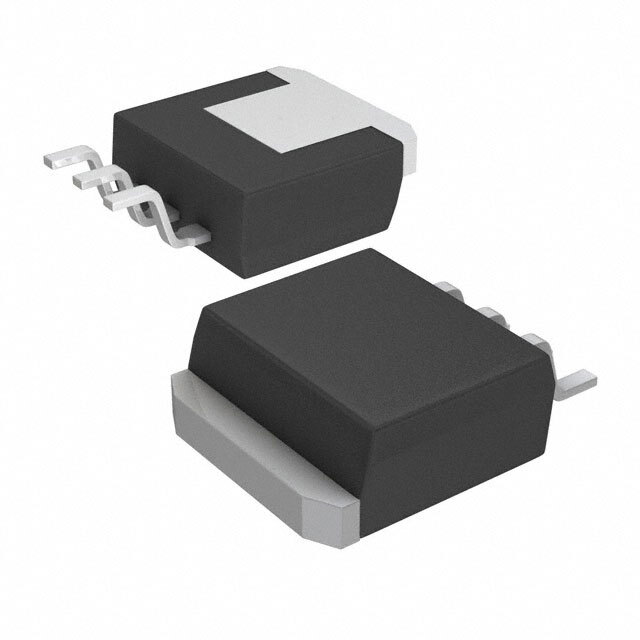

LM1084IS-3.3

SKU: 47685

Manufacturer: Texas Instruments

LDO Regulator Pos 3.3V 5A 4-Pin(3+Tab) DDPAK Rail

680 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Positive
Output Type	Fixed
Output Voltage (V)	3.3
Maximum Output Current (A)	5
Minimum Input Voltage (V)	2.6
Maximum Input Voltage (V)	27
Maximum Dropout Voltage @ Current (V)	1.5@5A
Line Regulation	6mV
Load Regulation	15mV
Maximum Quiescent Current (mA)	10
Maximum Power Dissipation (mW)	30000
Junction to Case	2.7°C/W
Special Features	Current Limit
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Rail
Original Package	DDPAK
Pin Count	4
Standard Package Method	TO-263
Terminal Form	Surface Mount
Package Height	4.83(Max)
Package Length	10.67(Max)
Package Width	9.65(Max)
PCB changed	3
Tab	Tab
