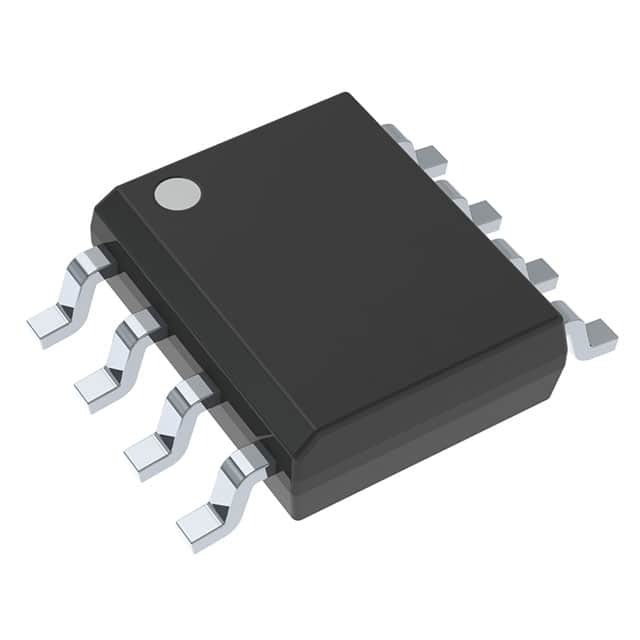

LF353D

SKU: 125350

Manufacturer: Texas Instruments

Op Amp Dual Wideband Amplifier ±18V 8-Pin SOIC Tube

3740 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Type	Wideband Amplifier
Manufacturer Type	Wideband Amplifier
Number of Channels per Chip	2
Process Technology	BiFET
Maximum Input Offset Voltage (mV)	10@±15V
Minimum Dual Supply Voltage (V)	±3.5
Typical Dual Supply Voltage (V)	±5
Maximum Dual Supply Voltage (V)	±18
Maximum Input Offset Current (uA)	0.0001@±15V
Typical Input Bias Current (uA)	0.00005@±15V
Maximum Input Bias Current (uA)	0.0002@±15V
Maximum Supply Current (mA)	6.5@±15V
Typical Output Resistance (Ohm)	200
Power Supply Type	Dual
Maximum Power Dissipation (mW)	500
Typical Slew Rate (V/us)	13@±15V
Typical Input Noise Voltage Density (nV/rtHz)	18@±15V
Typical Voltage Gain (dB)	100
Typical Noninverting Input Current Noise Density (pA/rtHz)	0.01@±15V
Minimum CMRR (dB)	70
Minimum CMRR Range (dB)	70 to 71
Typical Gain Bandwidth Product (MHz)	3
Shut Down Support	No
Operating Temperature-Min	0
Operating Temperature-Max	70
Packing Method	Tube
Pin Count	8
Standard Package Method	SOP
Original Package	SOIC
Terminal Form	Surface Mount
Package Height	1.5(Max)
Package Length	5(Max)
Package Width	3.98(Max)
PCB changed	8
