JM38510/30601BFA

SKU: 51857

Manufacturer: Texas Instruments

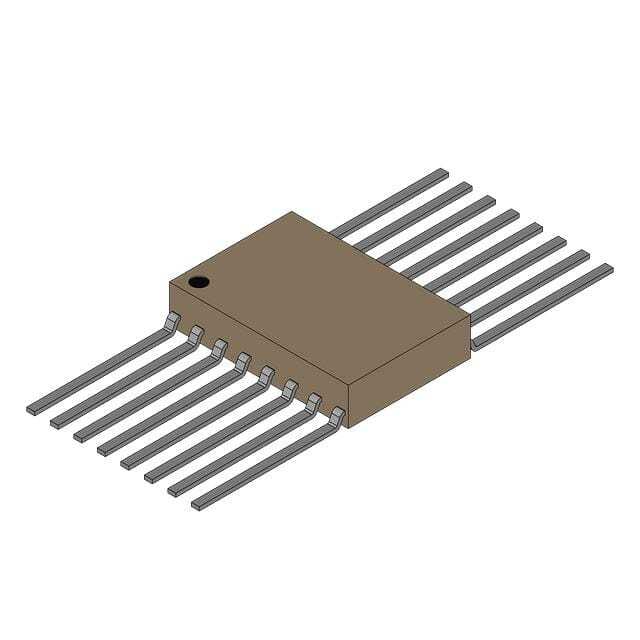

Shift Register Single 4-Bit Serial/Parallel to Parallel 16-Pin CFPAK Tube

2910 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Logic Family	LS
Logic Function	Shift Register
Operation Mode	Serial/Parallel to Parallel
Number of Elements per pcs	1
Number of Element Inputs	6
Number of Count Input Enables	0
Number of Selection Inputs per Element	2
Number of Element Outputs	4
Number of Stages	4
Reset Type	Asynchronous
Direction Type	Bi-Directional
Triggering Type	Positive-Edge
Maximum Propagation Delay Time @ Maximum CL (ns)	26@5V
Absolute Propagation Delay Time (ns)	30
Process Technology	Bipolar
Operating Supply Voltage-Min (V)	4.5
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.5
Propagation Delay Test Condition (pF)	15
Parallel Enable Input	No
Terminal Count Output	No
Operating Temperature-Min	-55
Operating Temperature-Max	125
Supplier Temperature Grade	Military
Packing Method	Tube
Original Package	CFPAK
Pin Count	16
Standard Package Method	FPAK
Terminal Form	Surface Mount
Package Height	2.03(Max)
Package Length	10.92(Max)
Package Width	7.24(Max)
PCB changed	16
