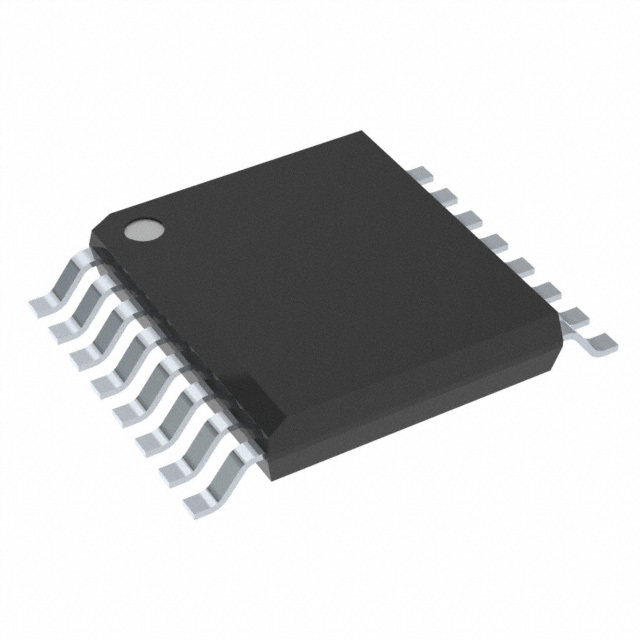

ISO7762DBQ

SKU: 139501

Manufacturer: Texas Instruments

Digital Isolator CMOS 6-CH 100Mbps 16-Pin SSOP Tube

1130 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	SPI
Number of Channels per Chip	6
Maximum Data Rate	100Mbps
Maximum Rise Time (ns)	3.9
Maximum Fall Time (ns)	3.9
Maximum Pulse Width Distortion (ns)	4.9
Output Type	CMOS
Operating Supply Voltage-Max (V)	5.5
Operating Supply Voltage-Min (V)	2.25
Maximum Propagation Delay Time (tPHL) (ns)	18.5
Minimum Isolation Voltage (Vrms)	3000
Maximum Propagation Delay Time (tPLH) (ns)	16
Maximum Output Current Drive (mA)	15
Maximum Power Dissipation (mW)	292
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Tube
Forward/Reverse Channels	4/2
Minimum Common Mode Rejection (kV/us)	85
Maximum ESD Protection Voltage (kV)	±6000@HBM
Coupling Type	Capacitive Coupling
Standard Package Method	SSOP
Original Package	SSOP
Pin Count	16
Terminal Form	Surface Mount
Package Height	1.5(Max)
Package Length	5(Max)
Package Width	4(Max)
PCB changed	16
