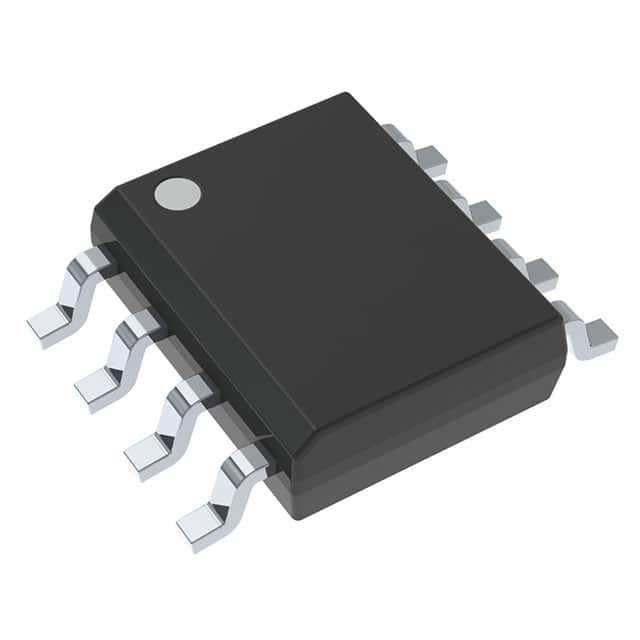

ISO7221CDR

SKU: 96873

Manufacturer: Texas Instruments

Digital Isolator CMOS 2-CH 25Mbps 8-Pin SOIC T/R

24200 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	General Purpose
Number of Channels per Chip	2
Maximum Data Rate	25Mbps
Maximum Rise Time (ns)	2(Typ)
Maximum Fall Time (ns)	2(Typ)
Minimum Pulse Width (ns)	40
Maximum Pulse Width Distortion (ns)	3
Output Type	CMOS
Operating Supply Voltage-Max (V)	5.5
Operating Supply Voltage-Min (V)	3
Maximum Propagation Delay Time (tPHL) (ns)	52
Minimum Isolation Voltage (Vrms)	2500
Maximum Propagation Delay Time (tPLH) (ns)	52
Maximum Working Insulation Voltage	560Vp
Maximum Quiescent Supply Current (mA)	17
Maximum Power Dissipation (mW)	390
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Typical Operating Supply Voltage (V)	5
Forward/Reverse Channels	1/1
Minimum Common Mode Rejection (kV/us)	25
Maximum ESD Protection Voltage (kV)	±1@CDM/±4@HBM/±0.2@MM
Coupling Type	Capacitive Coupling
Standard Package Method	SOP
Original Package	SOIC
Pin Count	8
Terminal Form	Surface Mount
Package Height	1.5(Max)
Package Length	5(Max)
Package Width	3.98(Max)
PCB changed	8
