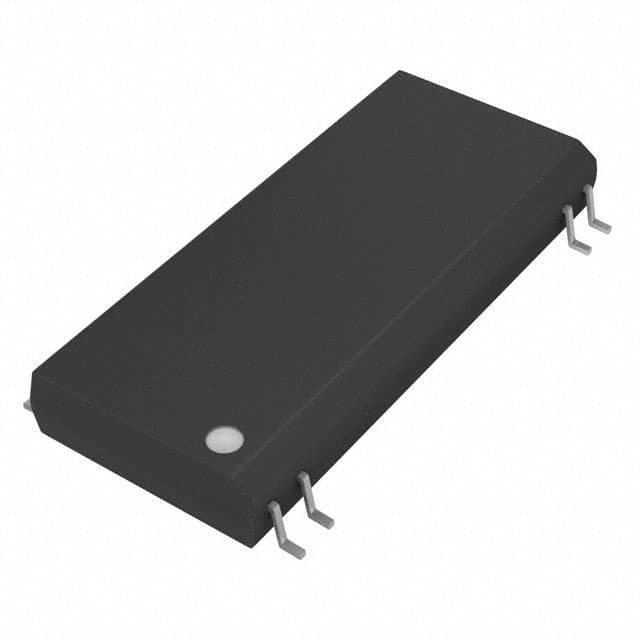

ISO122JU/1KE4

SKU: 65883

Manufacturer: Texas Instruments

SP Amp ISOL Amp Single ±18V 8-Pin SOP T/R

1380 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
Part Status	Obsolete
Automotive	No
PPAP	No
Type	Isolation Amplifier
Number of Elements per pcs	1
Number of Channels per Chip	1
Maximum Voltage Gain Range (dB)	<35
Maximum Voltage Gain (dB)	0(Typ)
Typical Output Current (mA)	15@±15V
Maximum Input Offset Voltage (mV)	50@±15V
Operating Supply Voltage-Max (V)	±18
Maximum Supply Voltage Range (V)	30 to 50
Minimum Dual Supply Voltage (V)	±4.5
Typical Dual Supply Voltage (V)	±15
Maximum Dual Supply Voltage (V)	±18
Maximum Input Resistance (MOhm)	0.2(Typ)@±15V
Operating Temperature-Min	-25
Operating Temperature-Max	85
Packing Method	Tape and Reel
Power Supply Type	Dual
Original Package	SOP
Pin Count	8
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	2.3
Package Length	17.9
Package Width	7.5
PCB changed	8
