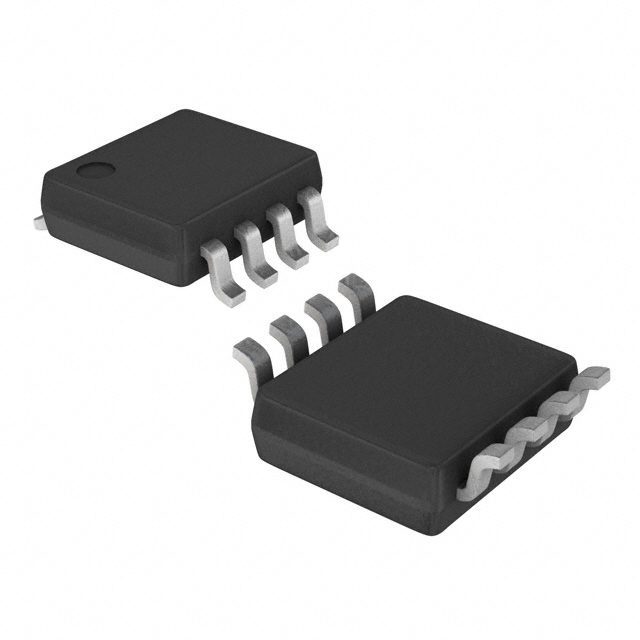

INA332AIDGKR

SKU: 19060

Manufacturer: Texas Instruments

INST Amp Single R-R O/P 5.5V 8-Pin VSSOP T/R

760 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Number of Channels per Chip	1
Rail to Rail	Rail to Rail Output
Maximum Voltage Gain (dB)	60
Maximum Voltage Gain Range (dB)	60 to 75
Minimum CMRR (dB)	60
Minimum CMRR Range (dB)	60 to 75
Minimum PSRR (dB)	86.02(Typ)
Maximum Input Offset Voltage (mV)	8@5V
Operating Supply Voltage-Max (V)	5.5
Maximum Supply Voltage Range (V)	5 to 7
Minimum Single Supply Voltage (V)	2.5
Typical Single Supply Voltage (V)	3
Maximum Single Supply Voltage (V)	5.5
Maximum Input Bias Current (uA)	0.00001@5.5V
Maximum Input Resistance (MOhm)	10000000(Typ)@5.5V
Power Supply Type	Single
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Tape and Reel
Pin Count	8
Standard Package Method	SOP
Original Package	VSSOP
Terminal Form	Surface Mount
Package Height	0.95(Max)
Package Length	3.1(Max)
Package Width	3.1(Max)
PCB changed	8
