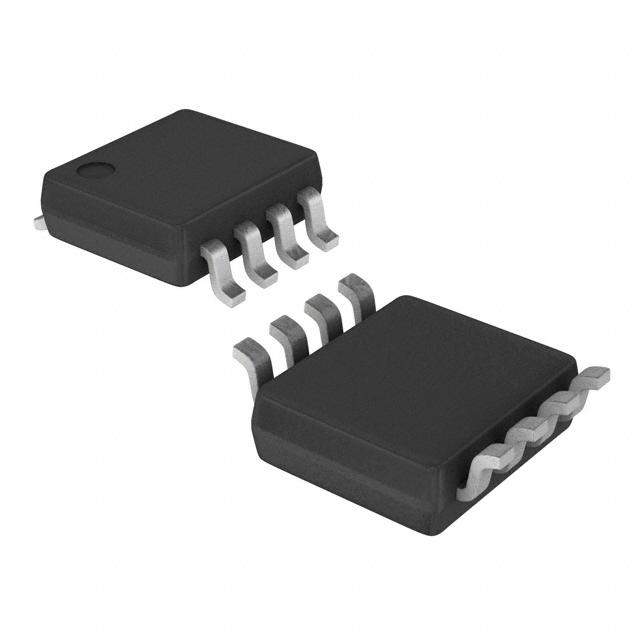

INA152EA/2K5

SKU: 132274

Manufacturer: Texas Instruments

SP Amp DIFF AMP Single R-R O/P ±10V/20V Automotive 8-Pin VSSOP T/R

550 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Type	Differential Amplifier
Number of Elements per pcs	1
Number of Channels per Chip	1
Rail to Rail	Rail to Rail Output
Maximum Voltage Gain Range (dB)	<35
Maximum Voltage Gain (dB)	0
Minimum CMRR Range (dB)	75 to 85
Minimum CMRR (dB)	80
Output Type	Differential
Maximum Input Offset Voltage (mV)	1.5@5V
Operating Supply Voltage-Max (V)	±10
Maximum Supply Voltage Range (V)	20 to 30
Minimum Single Supply Voltage (V)	2.7
Typical Single Supply Voltage (V)	3
Maximum Single Supply Voltage (V)	20
Minimum Dual Supply Voltage (V)	±1.35
Typical Dual Supply Voltage (V)	±3
Maximum Dual Supply Voltage (V)	±10
Maximum Input Resistance (MOhm)	0.08(Typ)@±10V
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Extended Industrial
Packing Method	Tape and Reel
Power Supply Type	Single
Pin Count	8
Standard Package Method	SOP
Original Package	VSSOP
Terminal Form	Surface Mount
Package Height	0.95(Max)
Package Length	3.1(Max)
Package Width	3.1(Max)
PCB changed	8
