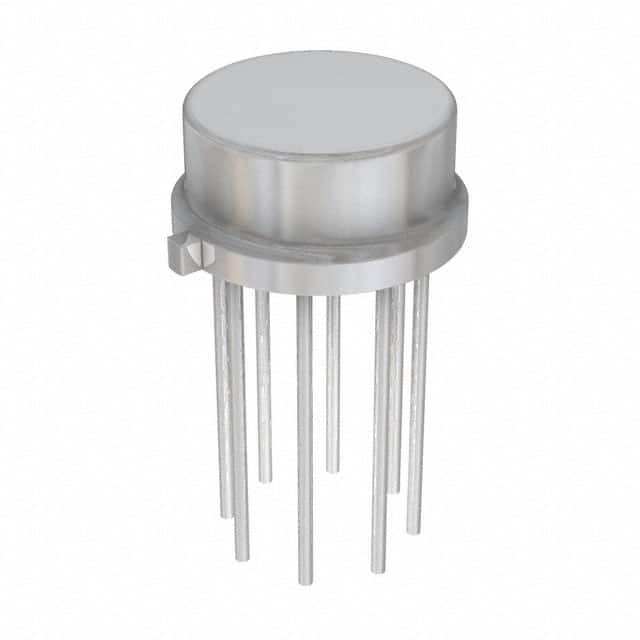

INA117SM

SKU: 37541

Manufacturer: Texas Instruments

SP Amp DIFF AMP Single ±18V 8-Pin TO-99 Tube

960 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	NRND
HTS	8542.33.00.01
Automotive	No
PPAP	No
Type	Differential Amplifier
Number of Elements per pcs	1
Number of Channels per Chip	1
Maximum Voltage Gain Range (dB)	<35
Maximum Voltage Gain (dB)	0(Typ)
Minimum CMRR Range (dB)	60 to 75
Minimum CMRR (dB)	66
Maximum Input Offset Voltage (mV)	1@±15V
Operating Supply Voltage-Max (V)	±18
Maximum Supply Voltage Range (V)	18 to 20
Minimum Dual Supply Voltage (V)	±5
Typical Dual Supply Voltage (V)	±15
Maximum Dual Supply Voltage (V)	±18
Maximum Input Resistance (MOhm)	0.8(Typ)@±15V
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Tube
Power Supply Type	Dual
Original Package	TO-99
Pin Count	8
Diameter	9.4(Max)
Terminal Form	Through Hole
Package Height	4.7(Max)
