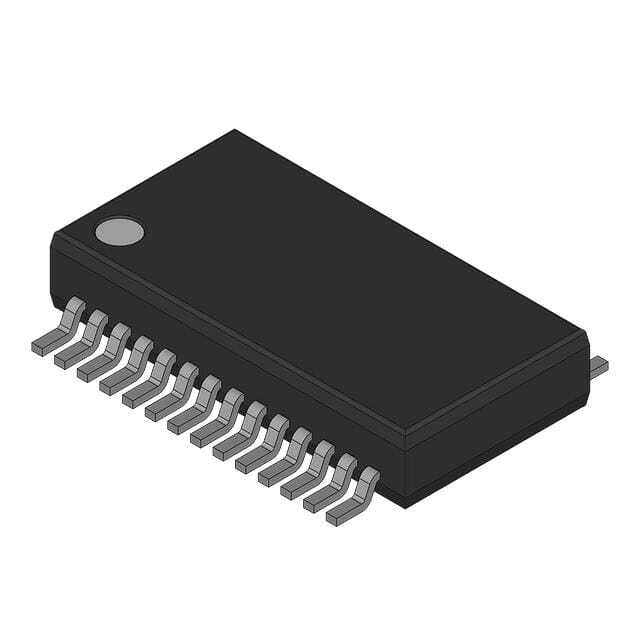

DSD1792ADB

SKU: 16175

Manufacturer: Texas Instruments

DAC 2-CH Segment 24-bit 28-Pin SSOP Tube

1820 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Converter Type	Audio
Architecture	Segment
Resolution	24bit
Conversion Rate	200ksps
Number of DAC Channels	2
Number of Outputs per Chip	2
Digital Interface Type	Serial (3-Wire)
Output Type	Current
Voltage Reference	Internal
Minimum Single Supply Voltage (V)	4.75
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	5.25
Power Supply Type	Analog and Digital
Maximum Power Dissipation (mW)	250
Integral Nonlinearity Error	±1dB(Typ)
Full Scale Error	6%FSR
Signal to Noise Ratio	132dB(Typ)
Digital Supply Support	Yes
Operating Temperature-Min	-25
Operating Temperature-Max	85
Packing Method	Tube
Pin Count	28
Standard Package Method	SOP
Original Package	SSOP
Terminal Form	Surface Mount
Package Height	2(Max) - 0.05(Min)
Package Length	10.5(Max)
Package Width	5.6(Max)
PCB changed	28
