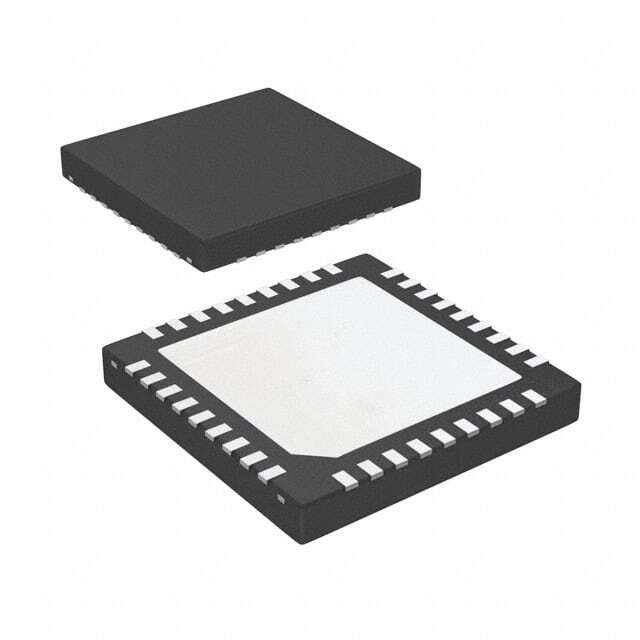

    DS99R421QSQX/NOPB

    SKU: 117667
    Manufacturer: Texas Instruments
    LVDS Converter 1200Mbps 1.15V Automotive 36-Pin WQFN EP T/R
    6710 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant
    ECCN (US) EAR99
    Part Status Active
    HTS 8542.39.00.01
    Automotive Yes
    PPAP Yes
    Function Converter
    Number of Drivers 1
    Number of Receivers 4
    Number of Elements per pcs 1
    Transmission Data Rate (Mbps) 1200
    Minimum Operating Frequency (MHz) 5
    Maximum Operating Frequency (MHz) 43
    Input Signal Type LVDS
    Operating Supply Voltage-Min (V) 3
    Operating Supply Voltage-Max (V) 3.6
    Differential Input Low Threshold Voltage (V) -0.1
    Differential Input High Threshold Voltage (V) 0.1
    Maximum Differential Output Voltage (V) 1.15
    Typical Operating Supply Voltage (V) 3.3
    Maximum Input Current (uA) 10
    Operating Temperature-Min -40
    Operating Temperature-Max 105
    Packing Method Tape and Reel
    Pin Count 36
    Standard Package Method QFN
    Original Package WQFN EP
    Terminal Form Surface Mount
    Package Height 0.8(Max)
    Package Length 6
    Package Width 6
    PCB changed 36
