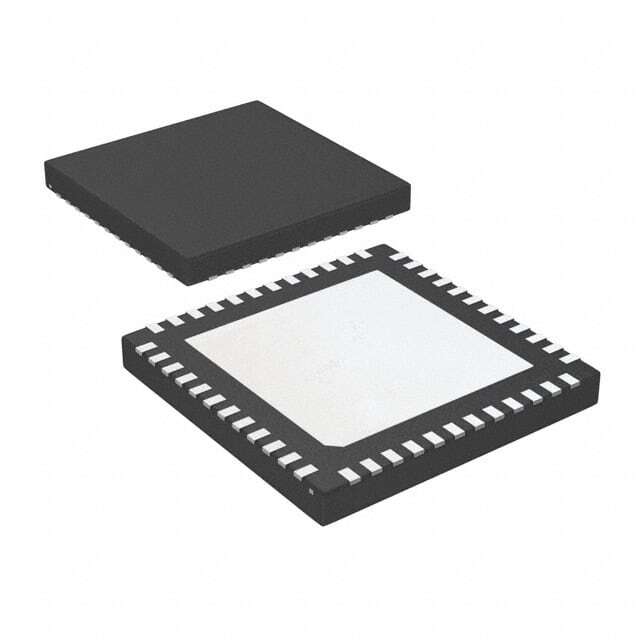

DS92LV2421SQ/NOPB

SKU: 96384

Manufacturer: Texas Instruments

LVDS Serializer 2100Mbps 0.52V 48-Pin WQFN EP T/R

2010 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
Automotive	No
PPAP	No
Function	Serializer
Number of Drivers	1
Number of Receivers	24
Number of Elements per pcs	1
Transmission Data Rate (Mbps)	2100
Minimum Operating Frequency (MHz)	10
Maximum Operating Frequency (MHz)	75
Input Signal Type	LVCMOS
Operating Supply Voltage-Min (V)	1.71
Operating Supply Voltage-Max (V)	1.89
Differential Input Low Threshold Voltage (V)	-0.05
Differential Input High Threshold Voltage (V)	0.05
Maximum Differential Output Voltage (V)	0.52
Typical Operating Supply Voltage (V)	1.8
Maximum Input Current (uA)	15
Maximum Power Dissipation (mW)	225
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tape and Reel
Original Package	WQFN EP
Pin Count	48
Standard Package Method	QFN
Terminal Form	Surface Mount
Package Height	0.8(Max) - 0.05
Package Length	7.15(Max)
Package Width	7.15(Max)
PCB changed	48
