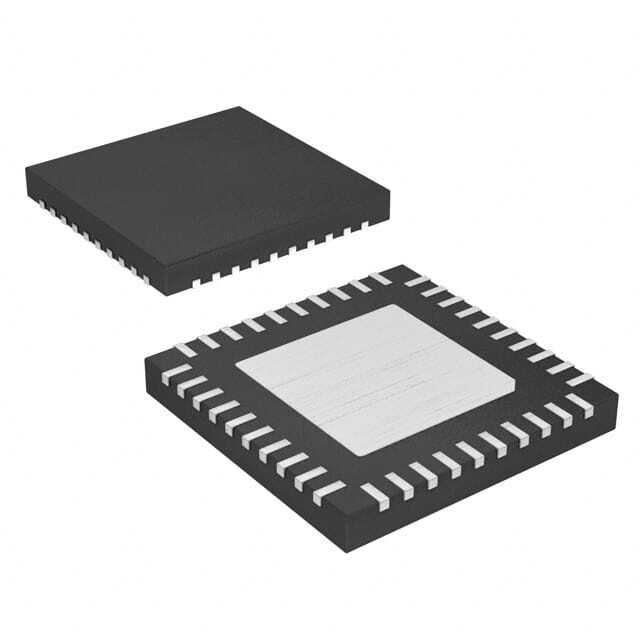

DS90UB902QSQ/NOPB

SKU: 68222

Manufacturer: Texas Instruments

LVDS Deserializer 688Mbps 0.412V Automotive 40-Pin WQFN EP T/R

2210 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
Automotive	Yes
PPAP	Yes
Function	Deserializer
Number of Drivers	16
Number of Receivers	1
Number of Elements per pcs	1
Transmission Data Rate (Mbps)	688
Minimum Operating Frequency (MHz)	10
Maximum Operating Frequency (MHz)	43
Input Signal Type	LVCMOS
Operating Supply Voltage-Min (V)	1.71
Operating Supply Voltage-Max (V)	1.89
Differential Input Low Threshold Voltage (V)	-0.09
Differential Input High Threshold Voltage (V)	0.09
Maximum Differential Output Voltage (V)	0.412
Typical Operating Supply Voltage (V)	1.8
Maximum Input Current (uA)	20
Operating Temperature-Min	-40
Operating Temperature-Max	105
Packing Method	Tape and Reel
Pin Count	40
Standard Package Method	QFN
Original Package	WQFN EP
Terminal Form	Surface Mount
Package Height	0.75(Max)
Package Length	6.15(Max)
Package Width	6.15(Max)
PCB changed	40
