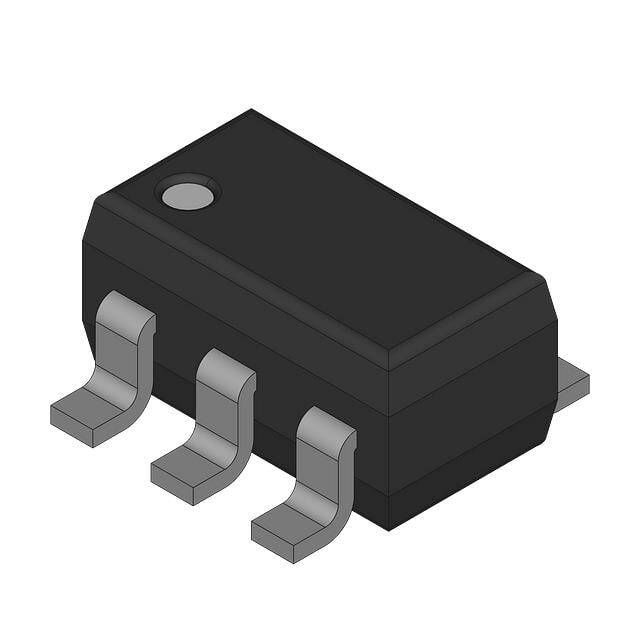

DS90LT012ATMF/NOPB

SKU: 68218

Manufacturer: Texas Instruments

LVDS Receiver 400Mbps 5-Pin SOT-23 T/R

23590 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	5A991b.
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Function	Receiver
Number of Drivers	0
Number of Receivers	1
Number of Elements per pcs	1
Transmission Data Rate (Mbps)	400
Maximum Propagation Delay Time (ns)	3.5
Minimum Operating Frequency (MHz)	200
Maximum Operating Frequency (MHz)	250(Typ)
Process Technology	CMOS
Input Signal Type	LVDS
Operating Supply Voltage-Min (V)	2.7
Operating Supply Voltage-Max (V)	3.6
Differential Input Low Threshold Voltage (V)	-0.1(Min)
Differential Input High Threshold Voltage (V)	0
Typical Operating Supply Voltage (V)	3.3
Maximum Input Current (uA)	20
Maximum Power Dissipation (mW)	902
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Pin Count	5
Standard Package Method	SOT
Original Package	SOT-23
Terminal Form	Surface Mount
Package Height	1.1
Package Length	3.05(Max)
Package Width	1.75(Max)
PCB changed	5
