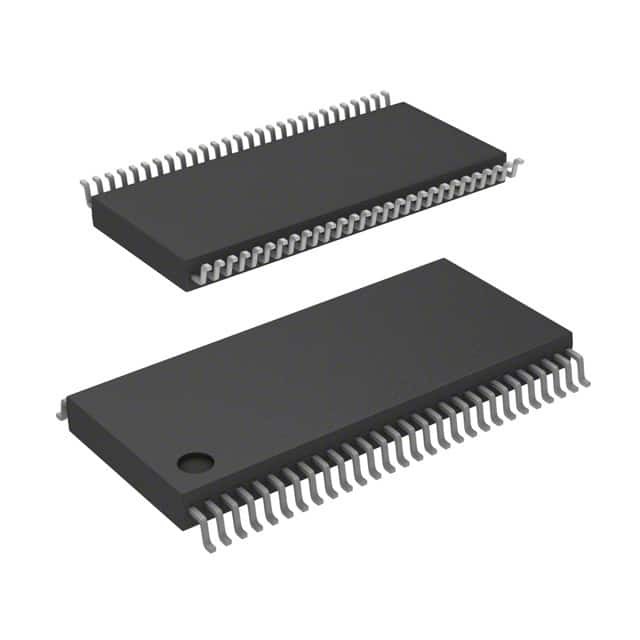

DS90CR287MTDX

SKU: 82249

Manufacturer: Texas Instruments

LVDS Transmitter 2380Mbps 0.45V 56-Pin TSSOP T/R

1250 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	5A991.b.1
Part Status	Unconfirmed
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Function	Transmitter
Number of Drivers	0
Number of Receivers	4
Number of Elements per pcs	4
Transmission Data Rate (Mbps)	2380
Minimum Operating Frequency (MHz)	20
Maximum Operating Frequency (MHz)	85
Input Signal Type	LVCMOS
Operating Supply Voltage-Min (V)	3
Operating Supply Voltage-Max (V)	3.6
Differential Input Low Threshold Voltage (V)	-0.1(Min)
Differential Input High Threshold Voltage (V)	0.1(Max)
Maximum Differential Output Voltage (V)	0.45
Typical Operating Supply Voltage (V)	3.3
Maximum Input Current (uA)	15
Maximum Power Dissipation (mW)	1630
Operating Temperature-Min	-10
Operating Temperature-Max	70
Packing Method	Tape and Reel
Original Package	TSSOP
Pin Count	56
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	14.1(Max)
Package Width	6.2(Max)
PCB changed	56
