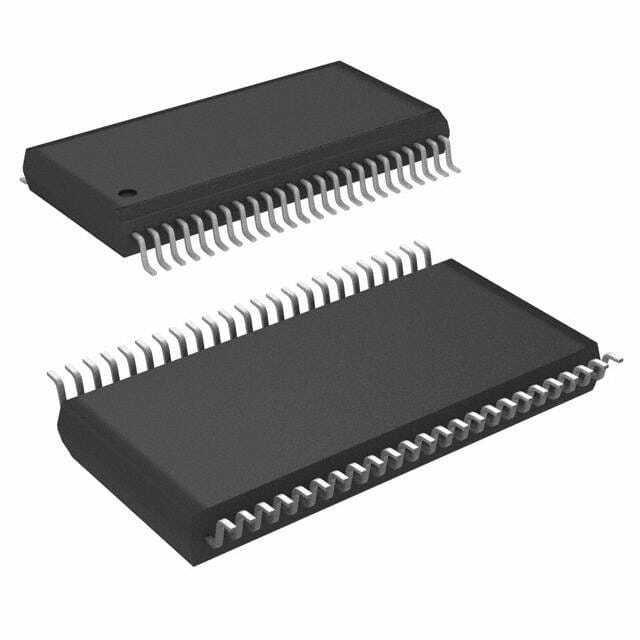

DS90C363MTD

SKU: 18695

Manufacturer: Texas Instruments

LVDS Transmitter 1300Mbps 0.45V 48-Pin TSSOP Tube

940 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	NRND
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Function	Transmitter
Number of Drivers	1
Number of Receivers	21
Number of Elements per pcs	3
Transmission Data Rate (Mbps)	1300
Minimum Operating Frequency (MHz)	20
Maximum Operating Frequency (MHz)	65
Input Signal Type	FPD-Link LVDS
Operating Supply Voltage-Min (V)	3
Operating Supply Voltage-Max (V)	3.6
Differential Input Low Threshold Voltage (V)	-0.1(Min)
Differential Input High Threshold Voltage (V)	0.1(Max)
Maximum Differential Output Voltage (V)	0.45
Typical Operating Supply Voltage (V)	3.3
Maximum Input Current (uA)	10
Maximum Power Dissipation (mW)	1890
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tube
Pin Count	48
Standard Package Method	SOP
Original Package	TSSOP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	12.6(Max)
Package Width	6.2(Max)
PCB changed	48
