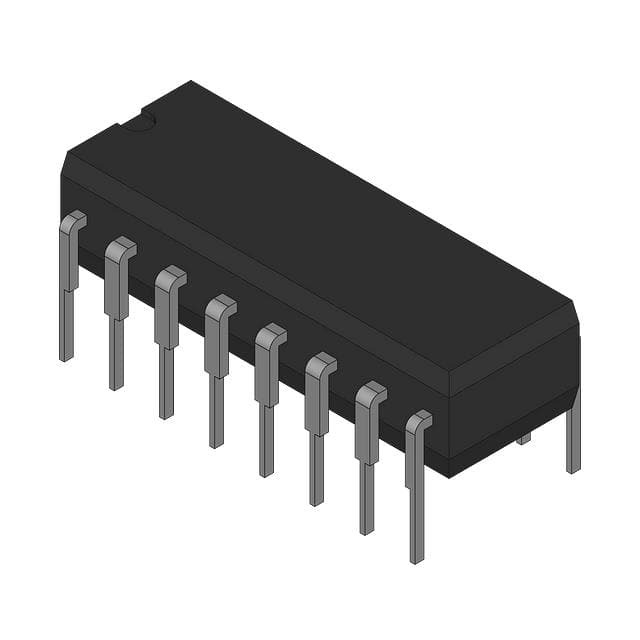

DS26C31TN

SKU: 61177

Manufacturer: Texas Instruments

Quad Transmitter RS-422 16-Pin PDIP Tube

150 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Function	Line Transmitter
Transmitter Communication Type	RS-422
Interface Standards	EIA-422
Data Transmission Topology	Multidrop
Number of Transmitters	4
Transmitter Signal Type	Differential
Number of Drivers per Line	1
Driving Mode	3-State
Number of Transmitter Enables	2
Operating Temperature-Min	-40
Operating Temperature-Max	85
Power Supply Type	Single
Minimum Single Supply Voltage (V)	4.5
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	5.5
Supplier Temperature Grade	Industrial
Packing Method	Tube
Pin Count	16
Original Package	PDIP
Standard Package Method	DIP
Terminal Form	Through Hole
Package Height	3.3
Package Length	19.05
Package Width	6.35
PCB changed	16
