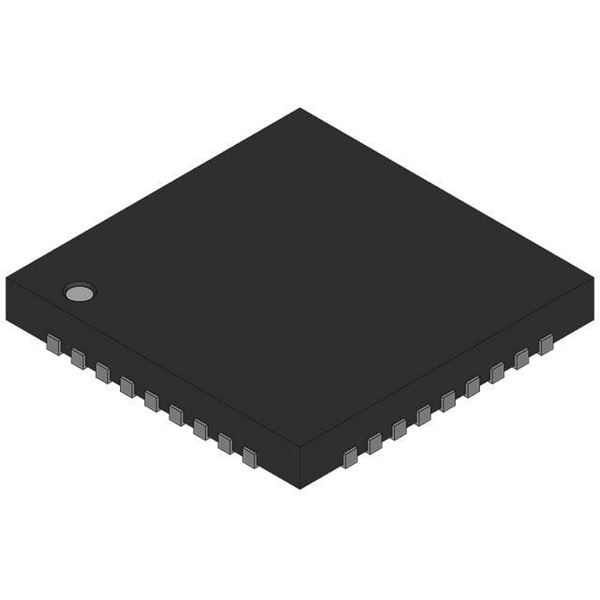

DS25MB100TSQX/NOPB

SKU: 18677

Manufacturer: Texas Instruments

LVDS Buffer 2500Mbps 36-Pin WQFN EP T/R

1860 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	5A991.b.1
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
Automotive	No
PPAP	No
Function	Buffer
Number of Drivers	3
Transmission Data Rate (Mbps)	2500
Maximum Propagation Delay Time (ns)	1
Input Signal Type	CML
Operating Supply Voltage-Min (V)	3.135
Operating Supply Voltage-Max (V)	3.465
Typical Operating Supply Voltage (V)	3.3
Maximum Input Current (uA)	10
Maximum Power Dissipation (mW)	450(Typ)
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	WQFN EP
Pin Count	36
Standard Package Method	QFN
Terminal Form	Surface Mount
Package Height	0.8(Max)
Package Length	6
Package Width	6
PCB changed	36
