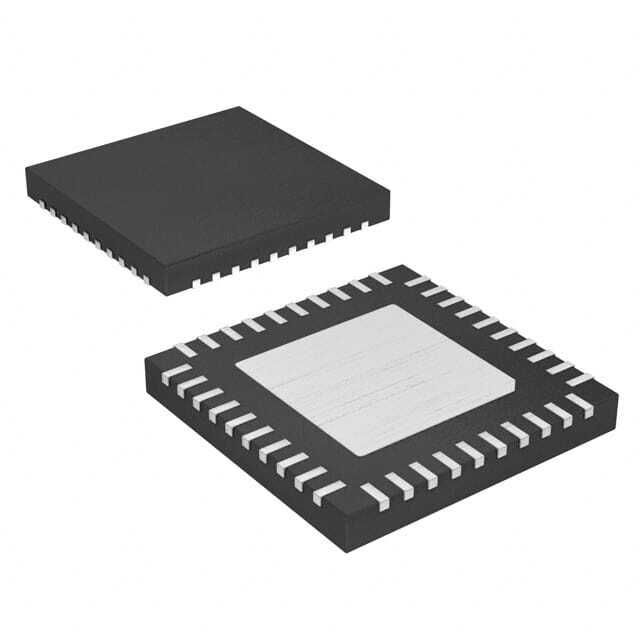

DS25BR440TSQX/NOPB

SKU: 136448

Manufacturer: Texas Instruments

LVDS Buffer 3125Mbps 0.45V 40-Pin WQFN EP T/R

2410 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	5A991.b.1
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
Automotive	No
PPAP	No
Function	Buffer
Number of Drivers	4
Number of Receivers	4
Transmission Data Rate (Mbps)	3125
Input Signal Type	LVPECL
Operating Supply Voltage-Min (V)	3
Operating Supply Voltage-Max (V)	3.6
Differential Input Low Threshold Voltage (V)	-0.1(Min)
Differential Input High Threshold Voltage (V)	0.1(Max)
Maximum Differential Output Voltage (V)	0.45
Typical Operating Supply Voltage (V)	3.3
Maximum Input Current (uA)	10
Maximum Power Dissipation (mW)	2440
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tape and Reel
Original Package	WQFN EP
Pin Count	40
Standard Package Method	QFN
Terminal Form	Surface Mount
Package Height	0.75(Max)
Package Length	6.15(Max)
Package Width	6.15(Max)
PCB changed	40
