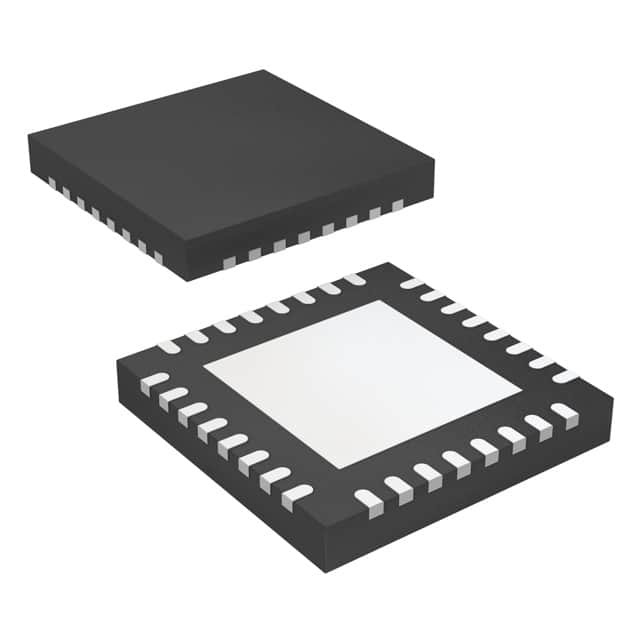

DS15BR400TSQ

SKU: 79739

Manufacturer: Texas Instruments

LVDS Buffer/Repeater 2000Mbps 0.5V 32-Pin WQFN EP T/R

1960 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	5A991B1
Part Status	NRND
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Function	Buffer/Repeater
Number of Drivers	4
Number of Receivers	4
Transmission Data Rate (Mbps)	2000
Maximum Propagation Delay Time (ns)	2
Input Signal Type	LVPECL
Operating Supply Voltage-Min (V)	3
Operating Supply Voltage-Max (V)	3.6
Differential Input Low Threshold Voltage (V)	-0.1(Min)
Differential Input High Threshold Voltage (V)	0.1(Max)
Maximum Differential Output Voltage (V)	0.5
Typical Operating Supply Voltage (V)	3.3
Maximum Input Current (uA)	10
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tape and Reel
Original Package	WQFN EP
Pin Count	32
Standard Package Method	QFN
Terminal Form	Surface Mount
Package Height	0.75(Max)
Package Length	5.15(Max)
Package Width	5.15(Max)
PCB changed	32
