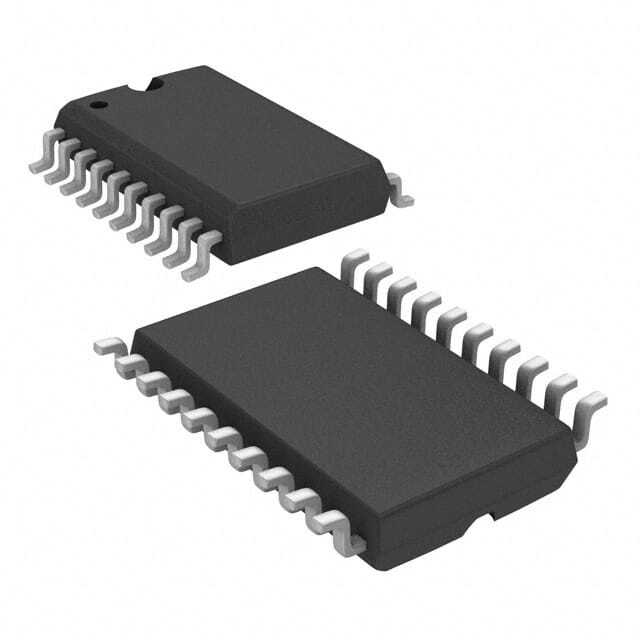

DS14185WMX/NOPB

SKU: 68187

Manufacturer: Texas Instruments

Triple Transmitter Quint Receiver RS-232 20-Pin SOIC T/R

1220 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Function	Line Transceiver
Data Rate	200Kbps
Transmitter Communication Type	RS-232
Receiver Communication Type	RS-232
Interface Standards	EIA/TIA-232-E
Data Transmission Topology	Point-to-Point
Number of Transceivers	1
Number of Transmitters	3
Number of Receivers	5
Transmitter Signal Type	Single-Ended
Receiver Signal Type	Single-Ended
Number of Drivers per Line	1
Number of Receivers per Line	1
Driving Mode	No
Number of Transmitter Enables	0
Number of Receiver Enables	0
Operating Temperature-Min	0
Operating Temperature-Max	70
Power Supply Type	Triple
Minimum Dual Supply Voltage (V)	4.75
Typical Dual Supply Voltage (V)	5
Maximum Dual Supply Voltage (V)	±13.2
Maximum Supply Current (mA)	30
Packing Method	Tape and Reel
Pin Count	20
Original Package	SOIC
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	2.35(Max)
Package Length	13(Max)
Package Width	7.6(Max)
PCB changed	20
