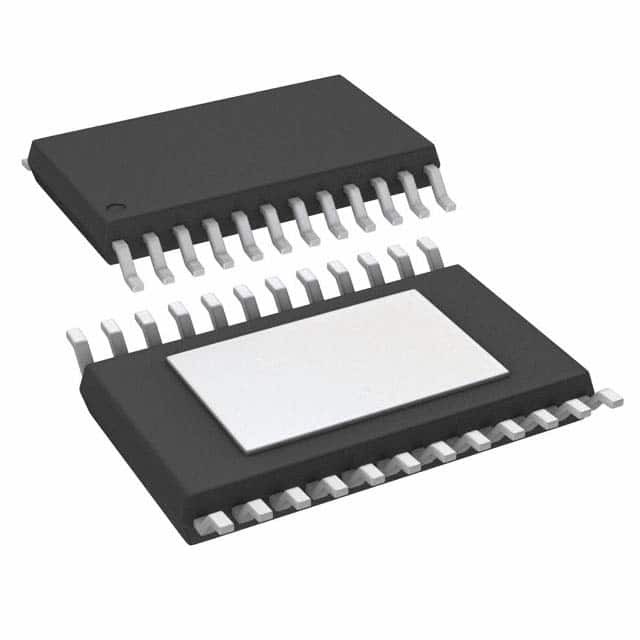

DRV8886PWP

SKU: 30287

Manufacturer: Texas Instruments

Quad Half Bridge Motor Driver 24-Pin HTSSOP EP Tube

1660 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
Automotive	No
PPAP	No
Type	Motor Driver
Motor Type	Stepper Motor
Step Modes	1/2
Control Interface	PWM
Output Configuration	Quad Half Bridge
Maximum Peak Output Current (A)	3
Operating Supply Voltage-Min (V)	8
Operating Supply Voltage (V)	8 to 37
Operating Supply Voltage-Max (V)	37
Maximum Operating Current (mA)	8
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tube
Original Package	HTSSOP EP
Pin Count	24
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	7.9(Max)
Package Width	4.5(Max)
PCB changed	24
