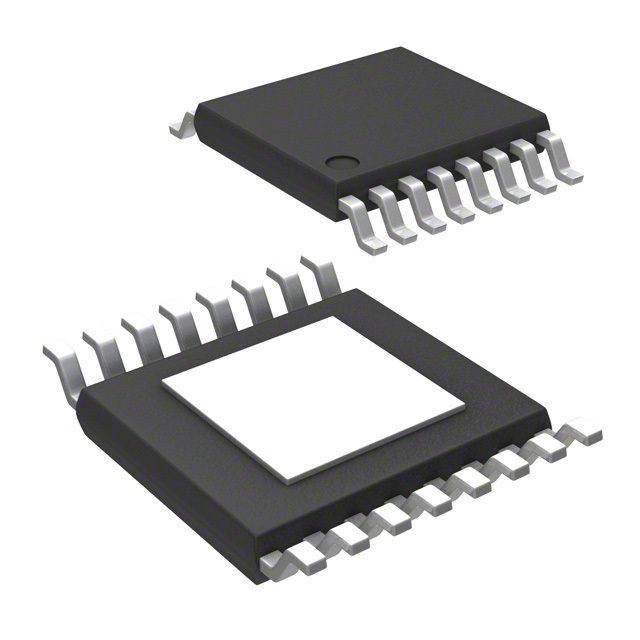

DRV8801PWP

SKU: 129334

Manufacturer: Texas Instruments

Full Bridge Motor Driver 32V 16-Pin HTSSOP EP Tube

100 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Motor Driver
Motor Type	Brush DC Motor
Control Interface	PWM
Output Configuration	Full Bridge
Maximum Peak Output Current (A)	2.8
Operating Supply Voltage-Min (V)	8
Operating Supply Voltage (V)	8 to 38
Typical Operating Supply Voltage (V)	32
Operating Supply Voltage-Max (V)	38
Maximum Operating Current (mA)	6(Typ)
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tube
Pin Count	16
Standard Package Method	SOP
Original Package	HTSSOP EP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	5.1(Max)
Package Width	4.5(Max)
PCB changed	16
