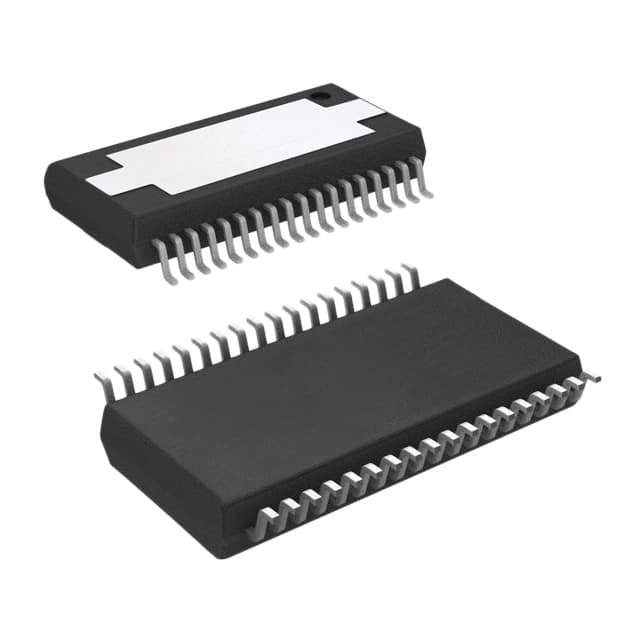

DRV8432DKD

SKU: 122252

Manufacturer: Texas Instruments

Dual Full Bridge Motor Driver 50V 36-Pin HSSOP EP Tube

2640 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Motor Driver
Motor Type	Stepper Motor
Control Interface	PWM
Output Configuration	Dual Full Bridge
Maximum Output Current (A)	14
Maximum Peak Output Current (A)	15
Operating Supply Voltage-Min (V)	0
Operating Supply Voltage (V)	0 to 52.5
Typical Operating Supply Voltage (V)	50
Operating Supply Voltage-Max (V)	52.5
Maximum Operating Current (mA)	12
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tube
Pin Count	36
Standard Package Method	SOP
Original Package	HSSOP EP
Terminal Form	Surface Mount
Package Height	3.3(Max)
Package Length	16(Max)
Package Width	11.1(Max)
PCB changed	36
