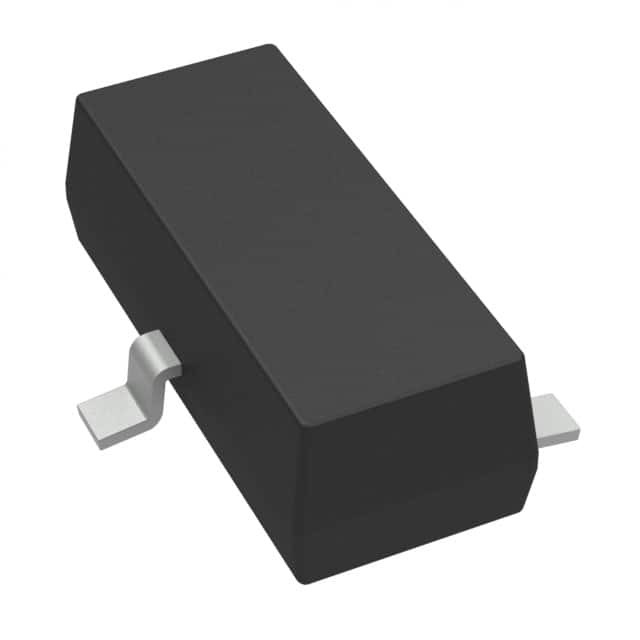

DRV5023AJQDBZT

SKU: 86825

Manufacturer: Texas Instruments

Hall Effect Sensor Unipolar 3.3V/5V/9V/12V/15V/18V/24V 3-Pin SOT-23 T/R

3610 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Magnetic Type	Unipolar
Module/IC Classification	IC
Minimum Magnetic Sensor Release Point (Gs)	10
Typical Magnetic Sensor Hysteresis (Gs)	37
Maximum Magnetic Sensor Operating Point (Gs)	120
Typical Output Fall Time (us)	0.031
Operating Supply Voltage-Min (V)	2.5
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	38
Maximum Supply Current (uA)	3500
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Original Package	SOT-23
Pin Count	3
Standard Package Method	SOT
Terminal Form	Surface Mount
Package Height	0.95
Package Length	3.04(Max)
Package Width	1.4(Max)
PCB changed	3
