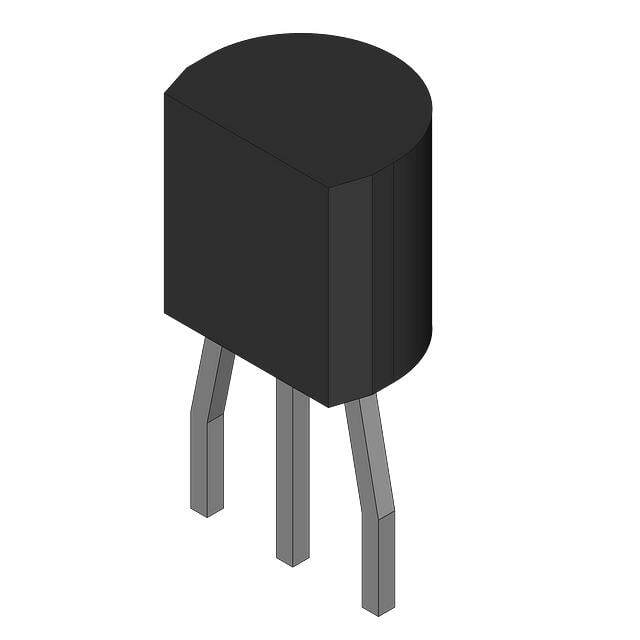

DRV5013BCQLPGM

SKU: 115141

Manufacturer: Texas Instruments

Hall Effect Sensor Bipolar Latch 3.3V/5V/9V/12V/15V/18V/24V 3-Pin TO-92 Ammo

2750 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Magnetic Type	Bipolar Latch
Module/IC Classification	IC
Minimum Magnetic Sensor Release Point (Gs)	-180
Typical Magnetic Sensor Hysteresis (Gs)	240
Maximum Magnetic Sensor Operating Point (Gs)	180
Typical Output Fall Time (us)	0.031
Operating Supply Voltage-Min (V)	2.5
Typical Operating Supply Voltage (V)	15
Operating Supply Voltage-Max (V)	38
Maximum Supply Current (uA)	3500
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Ammo
Original Package	TO-92
Pin Count	3
Standard Package Method	TO-92
Terminal Form	Through Hole
Package Height	3.25(Max)
Package Length	4.1(Max)
Package Width	1.62(Max)
PCB changed	3
