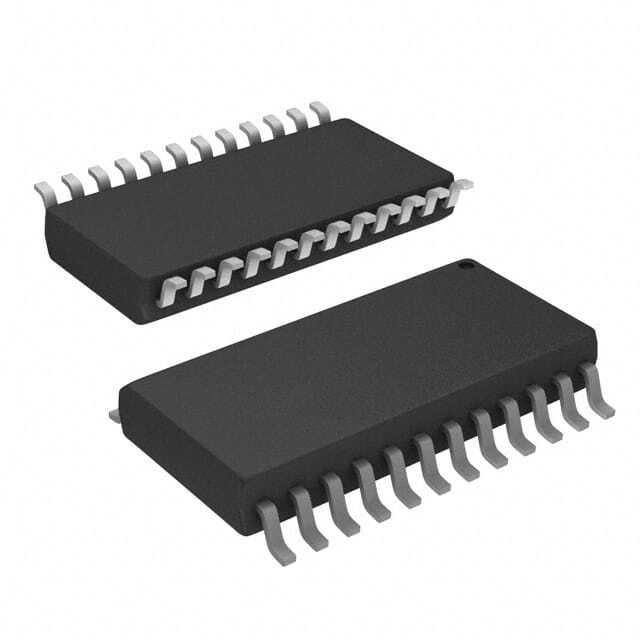

DDC101U

SKU: 68066

Manufacturer: Texas Instruments

1-Channel Single ADC Delta-Sigma 15ksps 20-bit Serial 24-Pin SOIC Tube

300 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	NRND
HTS	8542.39.00.01
SVHC	Yes
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	Delta-Sigma
Resolution	20bit
Number of ADCs	1
Number of Input Channels	1
Sampling Rate	15ksps
Digital Interface Type	Serial (SPI)
Input Type	Current
Input Signal Type	Single-Ended
Voltage Reference	Internal
Polarity of Input Voltage	Unipolar
Voltage Supply Source	Dual
Minimum Dual Supply Voltage (V)	±4.75
Typical Dual Supply Voltage (V)	±5
Maximum Dual Supply Voltage (V)	±5.25
Typical Power Dissipation (mW)	170
Integral Nonlinearity Error	±0.003%FSR
Full Scale Error	±2%FSR
No Missing Codes (bit)	18
Sample and Hold	No
Single-Ended Input	Yes
Digital Supply Support	Yes
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tube
Pin Count	24
Standard Package Method	SOP
Original Package	SOIC
Terminal Form	Surface Mount
Package Height	2.35(Max)
Package Length	15.6(Max)
Package Width	7.6(Max)
PCB changed	24
