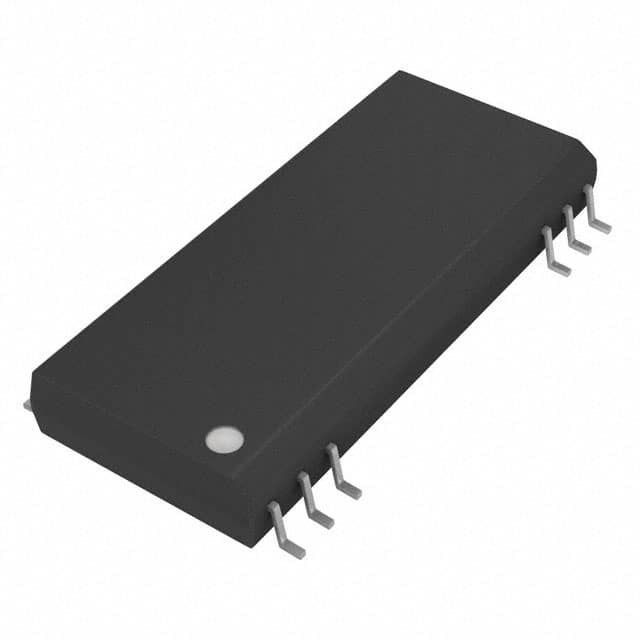

DCP020505U/1KE4 Texas Instruments

DCP020505U/1KE4

SKU: 79712

Manufacturer: Texas Instruments

Module DC-DC 5VIN 1-OUT 5V 0.4A 2W 12-Pin SOP T/R

Request Free Samples

2270 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
Part Status	Unconfirmed
SVHC	Yes
Automotive	No
PPAP	No
Number of Outputs	1
Isolation	Isolated
Minimum Input Voltage (V)	4.5
Typical Input Voltage (V)	5
Maximum Input Voltage (V)	5.5
Output Voltage (V)	5
Process Technology	BiCMOS/DMOS
Output Current (A)	0.4
Output Power (W)	2
Minimum Isolation Voltage	1000V
Input/Output Type	DC/DC
Typical Standby Current (mA)	3
Switching Frequency (kHz)	800(Typ)
Switching Regulator	Yes
Load Regulation	20mV
Line Regulation	15%
Efficiency (%)	80(Typ)
On/Off Logic	Positive
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Output Type	Fixed
Original Package	SOP
Pin Count	12
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	2.3
Package Length	17.9
Package Width	10.33
PCB changed	12
