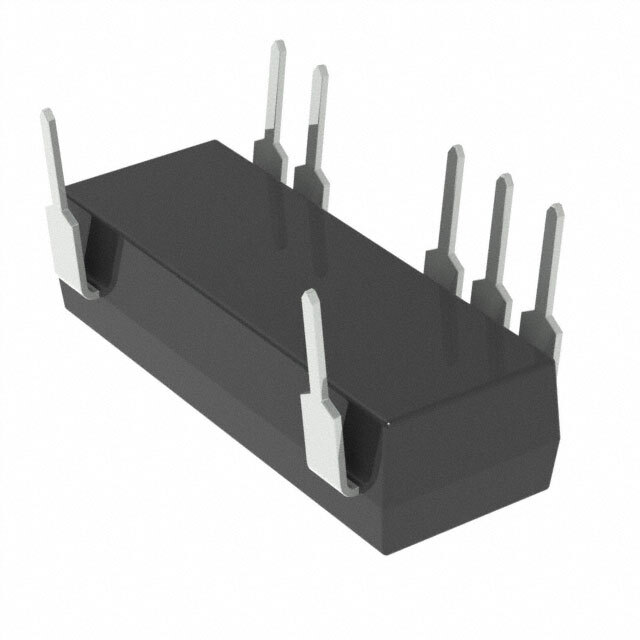

    DCP010505BP

    SKU: 124582
    Manufacturer: Texas Instruments
    Module DC-DC 5VIN 1-OUT 5V 0.2A 1W 7-Pin PDIP Tube
    Request Free Samples
    5830 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant
    ECCN (US) EAR99
    Part Status Active
    HTS 8542.39.00.01
    SVHC Yes
    Automotive No
    PPAP No
    Number of Outputs 1
    Isolation Isolated
    Minimum Input Voltage (V) 4.5
    Typical Input Voltage (V) 5
    Maximum Input Voltage (V) 5.5
    Output Voltage (V) 5
    Process Technology BiCMOS/DMOS
    Output Current (A) 0.2
    Output Power (W) 1
    Minimum Isolation Voltage 1000Vrms
    Input/Output Type DC/DC
    Typical Standby Current (mA) 3
    Switching Frequency (kHz) 400(Typ)
    Switching Regulator Yes
    Load Regulation 31%
    Line Regulation 15%
    Efficiency (%) 80(Typ)
    On/Off Logic Positive
    Operating Temperature-Min -40
    Operating Temperature-Max 100
    Packing Method Tube
    Output Type Fixed
    Original Package PDIP
    Pin Count 7
    Standard Package Method DIP
    Terminal Form Through Hole
    Package Height 3.94
    Package Length 19.18
    Package Width 6.61
    PCB changed 7
    • DCP010505BP Price
    • DCP0 Series
    • DCP010505BP Datasheet
    • DCP010505BP Application
    • DCP010505BP Pdf
    • DCP010505BP Pinout
    • DCP010505BP Image
    • DCP010505BP Picture
    • DCP010505BP In Stock
    • DCP010505BP Distributor
    • DCP010505BP Switching Regulator Modules & DC to DC Converters
    • DCP010505BP Texas Instruments
    Products specifications
    EU RoHS Compliant
    ECCN (US) EAR99
    Part Status Active
    HTS 8542.39.00.01
    SVHC Yes
    Automotive No
    PPAP No
    Number of Outputs 1
    Isolation Isolated
    Minimum Input Voltage (V) 4.5
    Typical Input Voltage (V) 5
    Maximum Input Voltage (V) 5.5
    Output Voltage (V) 5
    Process Technology BiCMOS/DMOS
    Output Current (A) 0.2
    Output Power (W) 1
    Minimum Isolation Voltage 1000Vrms
    Input/Output Type DC/DC
    Typical Standby Current (mA) 3
    Switching Frequency (kHz) 400(Typ)
    Switching Regulator Yes
    Load Regulation 31%
    Line Regulation 15%
    Efficiency (%) 80(Typ)
    On/Off Logic Positive
    Operating Temperature-Min -40
    Operating Temperature-Max 100
    Packing Method Tube
    Output Type Fixed
    Original Package PDIP
    Pin Count 7
    Standard Package Method DIP
    Terminal Form Through Hole
    Package Height 3.94
    Package Length 19.18
    Package Width 6.61
    PCB changed 7
