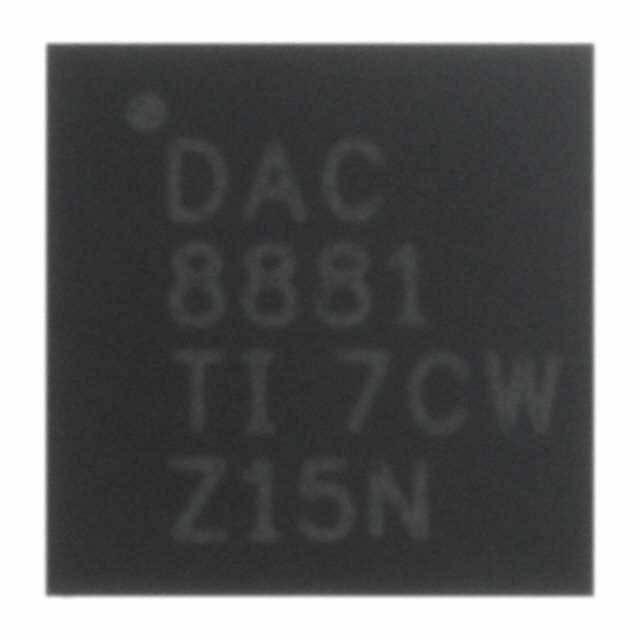

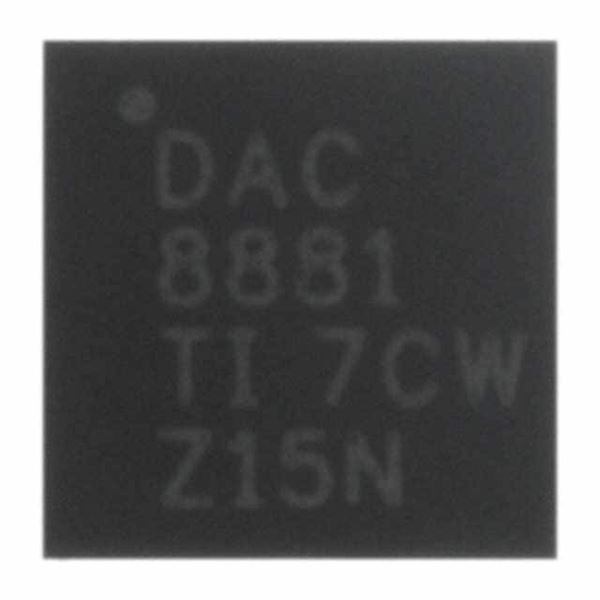

DAC8881SRGET

SKU: 150595

Manufacturer: Texas Instruments

DAC 1-CH R-2R 16-bit 24-Pin VQFN EP T/R

2680 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	R-2R
Resolution	16bit
Conversion Rate	200ksps
Number of DAC Channels	1
Number of Outputs per Chip	1
Maximum Settling Time (us)	5(Typ)
Digital Interface Type	Serial (3-Wire, SPI, QSPI, Microwire)
Output Type	Voltage
Output Polarity	Unipolar
Voltage Reference	External
Minimum Single Supply Voltage (V)	2.7
Typical Single Supply Voltage (V)	3.3
Maximum Single Supply Voltage (V)	5.5
Power Supply Type	Analog and Digital
Maximum Power Dissipation (mW)	7.5
Integral Nonlinearity Error	±1LSB
Full Scale Error	±8LSB
Digital Supply Support	Yes
Operating Temperature-Min	-40
Operating Temperature-Max	105
Packing Method	Tape and Reel
Pin Count	24
Standard Package Method	QFN
Original Package	VQFN EP
Terminal Form	Surface Mount
Package Height	0.95(Max)
Package Length	4.15(Max)
Package Width	4.15(Max)
PCB changed	24
