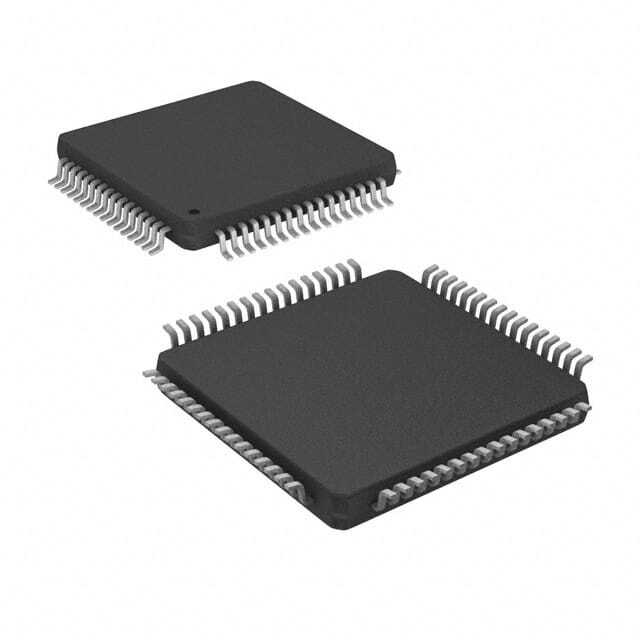

DAC8728SPAG

SKU: 117495

Manufacturer: Texas Instruments

DAC 8-CH Resistor-String 16-bit 64-Pin TQFP Tray

350 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	Resistor-String
Resolution	16bit
Conversion Rate	66ksps
Number of DAC Channels	8
Number of Outputs per Chip	8
Maximum Settling Time (us)	10(Typ)
Digital Interface Type	Parallel
Output Type	Voltage
Output Polarity	Unipolar
Voltage Reference	External
Minimum Single Supply Voltage (V)	9
Typical Single Supply Voltage (V)	30.5
Maximum Single Supply Voltage (V)	36
Minimum Dual Supply Voltage (V)	±4.5
Typical Dual Supply Voltage (V)	±15.5
Maximum Dual Supply Voltage (V)	±18
Power Supply Type	Single
Maximum Power Dissipation (mW)	224
Integral Nonlinearity Error	±4LSB
Full Scale Error	±15LSB
Digital Supply Support	Yes
Operating Temperature-Min	-40
Operating Temperature-Max	105
Packing Method	Tray
Pin Count	64
Standard Package Method	QFP
Original Package	TQFP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	10.2(Max)
Package Width	10.2(Max)
PCB changed	64
