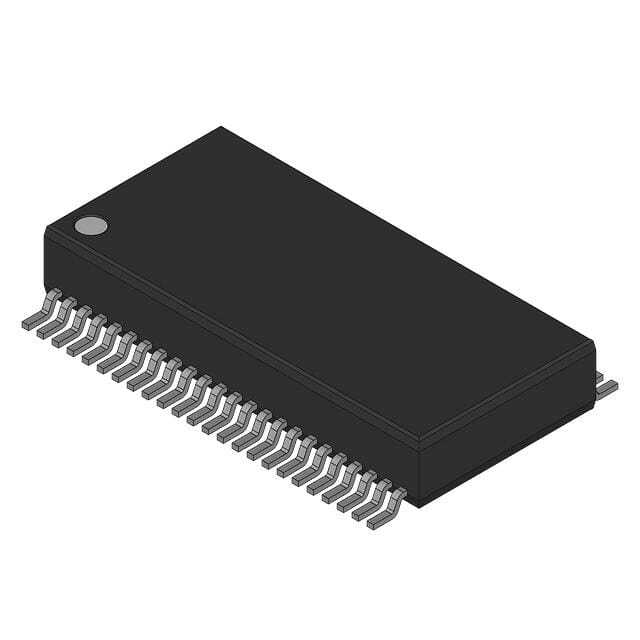

DAC7634EB/1K

SKU: 138844

Manufacturer: Texas Instruments

DAC 4-CH R-2R 16-bit 48-Pin SSOP T/R

2450 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	R-2R
Resolution	16bit
Conversion Rate	89ksps
Number of DAC Channels	4
Number of Outputs per Chip	4
Maximum Settling Time (us)	10
Digital Interface Type	Serial
Output Type	Voltage
Output Polarity	Bipolar
Voltage Reference	External
Minimum Single Supply Voltage (V)	4.75
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	5.25
Minimum Dual Supply Voltage (V)	±4.75
Typical Dual Supply Voltage (V)	±5
Maximum Dual Supply Voltage (V)	±5.25
Power Supply Type	Dual
Maximum Power Dissipation (mW)	20
Integral Nonlinearity Error	±3LSB
Full Scale Error	±2mV
Digital Supply Support	Yes
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Pin Count	48
Standard Package Method	SOP
Original Package	SSOP
Terminal Form	Surface Mount
Package Height	2.79(Max) - 0.2(Min)
Package Length	16(Max)
Package Width	7.59(Max)
PCB changed	48
