DAC7615UB

SKU: 25545

Manufacturer: Texas Instruments

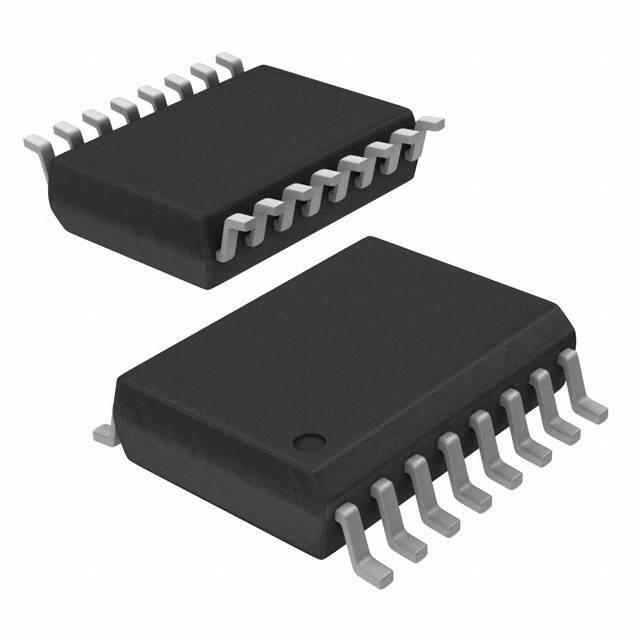

DAC 4-CH R-2R 12-bit 16-Pin SOIC Tube

900 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	R-2R
Resolution	12bit
Conversion Rate	89ksps
Number of DAC Channels	4
Number of Outputs per Chip	4
Maximum Settling Time (us)	10
Digital Interface Type	Serial
Output Type	Voltage
Output Polarity	Bipolar
Voltage Reference	External
Minimum Single Supply Voltage (V)	4.75
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	5.25
Minimum Dual Supply Voltage (V)	±4.75
Typical Dual Supply Voltage (V)	±5
Maximum Dual Supply Voltage (V)	±5.25
Power Supply Type	Dual
Maximum Power Dissipation (mW)	20
Integral Nonlinearity Error	±1LSB
Full Scale Error	±8LSB
Signal to Noise Ratio	12dB(Typ)
Digital Supply Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tube
Pin Count	16
Standard Package Method	SOP
Original Package	SOIC
Terminal Form	Surface Mount
Package Height	2.35(Max)
Package Length	10.5(Max)
Package Width	7.6(Max)
PCB changed	16
