DAC7614E/1KG4

SKU: 107977

Manufacturer: Texas Instruments

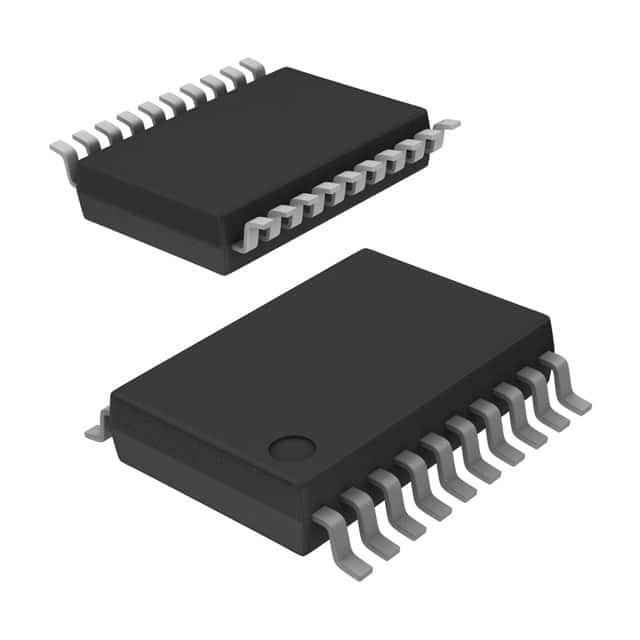

DAC 4-CH R-2R 12-bit 20-Pin SSOP T/R

1130 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
Part Status	Unconfirmed
HTS	8542.39.00.01
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	R-2R
Resolution	12bit
Conversion Rate	89ksps
Number of DAC Channels	4
Number of Outputs per Chip	4
Maximum Settling Time (us)	10
Digital Interface Type	Serial
Output Type	Voltage
Output Polarity	Unipolar
Voltage Reference	External
Minimum Single Supply Voltage (V)	4.75
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	5.25
Minimum Dual Supply Voltage (V)	±4.75
Typical Dual Supply Voltage (V)	±5
Maximum Dual Supply Voltage (V)	±5.25
Power Supply Type	Single
Maximum Power Dissipation (mW)	20
Integral Nonlinearity Error	±2LSB
Full Scale Error	±8LSB
Digital Supply Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	SSOP
Pin Count	20
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	2(Max) - 0.05(Min)
Package Length	7.5(Max)
Package Width	5.6(Max)
PCB changed	20
