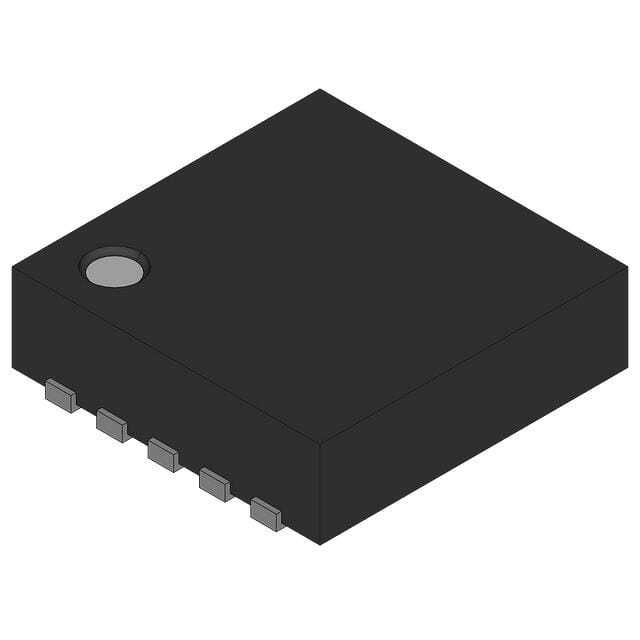

DAC124S085CISD

SKU: 82071

Manufacturer: Texas Instruments

DAC 4-CH Resistor-String 12-bit 10-Pin WSON EP T/R

920 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Unconfirmed
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	Resistor-String
Resolution	12bit
Conversion Rate	2.5Msps
Number of DAC Channels	4
Number of Outputs per Chip	4
Maximum Settling Time (us)	8.5
Digital Interface Type	Serial (3-Wire, SPI, QSPI, Microwire)
Output Type	Voltage
Output Polarity	Unipolar
Voltage Reference	External
Minimum Single Supply Voltage (V)	2.7
Typical Single Supply Voltage (V)	3.3
Maximum Single Supply Voltage (V)	5.5
Power Supply Type	Single
Integral Nonlinearity Error	±8LSB
Full Scale Error	-0.75%FSR
Digital Supply Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	105
Packing Method	Tape and Reel
Supplier Temperature Grade	Extended Industrial
Original Package	WSON EP
Pin Count	10
Standard Package Method	SON
Terminal Form	Surface Mount
Package Height	0.75(Max)
Package Length	3.15(Max)
Package Width	3.15(Max)
PCB changed	10
