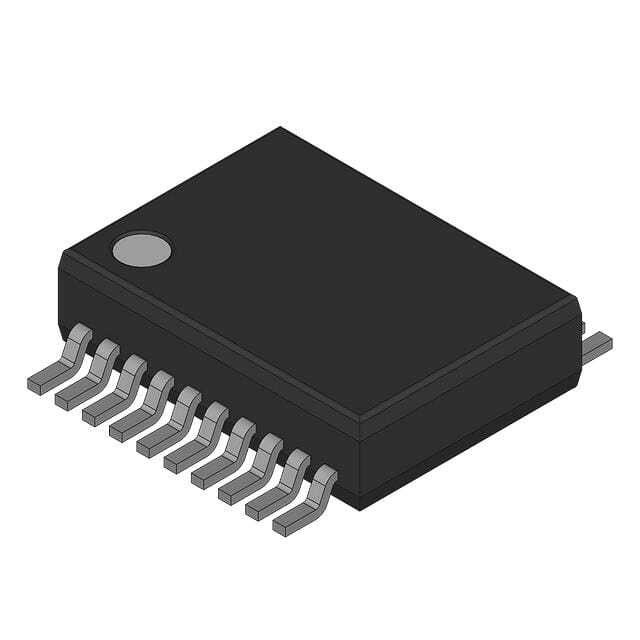

CY74FCT245TQC Texas Instruments

CY74FCT245TQC

SKU: 138760

Manufacturer: Texas Instruments

Bus XCVR Single 8-CH 3-ST 20-Pin SSOP

Request Free Samples

3940 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Supplier Unconfirmed
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Logic Family	FCT
Logic Function	Bus Transceiver
Data Flow Direction	Bi-Directional
Number of Elements per pcs	1
Number of Channels per Chip	8
Number of Selection Inputs per Element	0
Number of Output Enables per Element	1 Low
Number of Input Enables per Element	0
Number of Direction Control Inputs	1 Low/High
Bus Hold	No
Polarity	Non-Inverting
Absolute Propagation Delay Time (ns)	9.5
Maximum Propagation Delay Time @ Maximum CL (ns)	7@5V
Propagation Delay Test Condition (pF)	50
Process Technology	CMOS
Input Level	TTL
Output Level	TTL
Output Type	3-State
Maximum Low Level Output Current (mA)	64
Maximum High Level Output Current (mA)	-32
Typical Quiescent Current (uA)	100
Maximum Quiescent Current (uA)	200
Operating Supply Voltage-Min (V)	4.75
Operating Supply Voltage-Max (V)	5.25
Maximum Power Dissipation (mW)	500
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Commercial
Standard Package Method	SOP
Original Package	SSOP
Pin Count	20
Terminal Form	Surface Mount
Package Height	1.5(Max)
Package Length	8.75(Max)
Package Width	4(Max)
PCB changed	20
