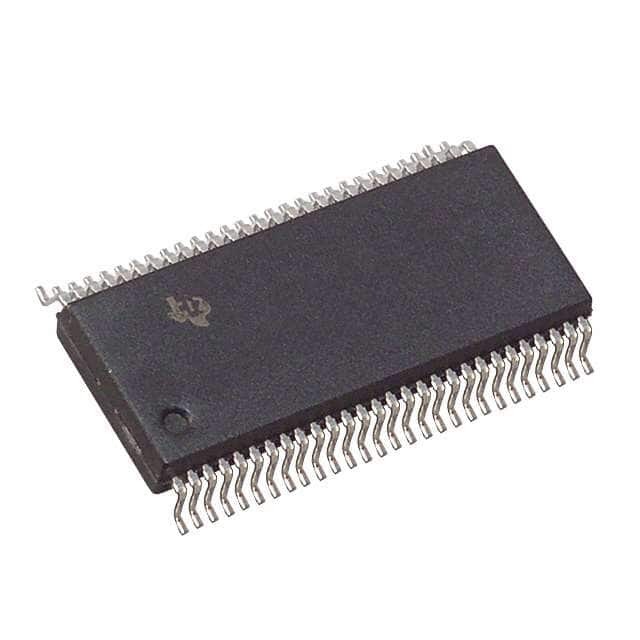

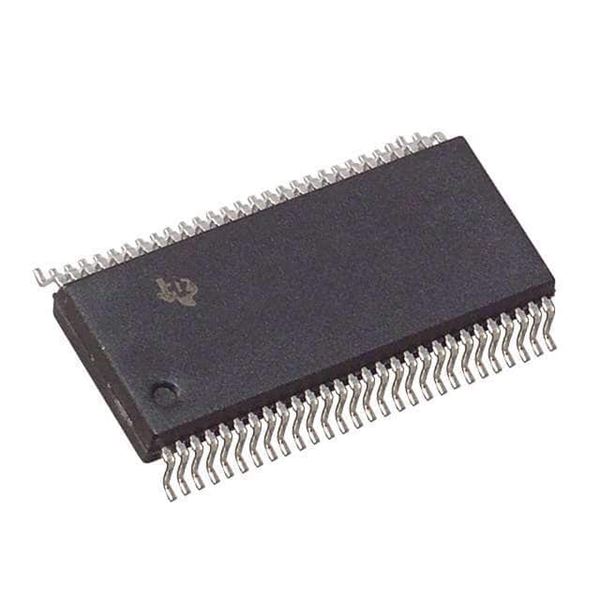

CY74FCT16652ATPVC Texas Instruments

CY74FCT16652ATPVC

SKU: 53971

Manufacturer: Texas Instruments

Bus XCVR Dual 16-CH 3-ST 56-Pin SSOP Tube

Request Free Samples

1930 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Logic Family	FCT
Logic Function	Bus Transceiver/Register
Data Flow Direction	Bi-Directional
Number of Elements per pcs	2
Number of Channels per Chip	16
Number of Selection Inputs per Element	2
Number of Output Enables per Element	1 Low/1 High
Number of Input Enables per Element	0
Number of Direction Control Inputs	0
Bus Hold	No
Triggering Type	Positive-Edge
Polarity	Non-Inverting
Absolute Propagation Delay Time (ns)	9.8
Maximum Propagation Delay Time @ Maximum CL (ns)	6.3@5V
Process Technology	CMOS
Input Level	TTL
Output Level	TTL
Output Type	3-State
Maximum Low Level Output Current (mA)	64
Maximum High Level Output Current (mA)	-32
Typical Quiescent Current (uA)	5
Maximum Quiescent Current (uA)	500
Operating Supply Voltage-Min (V)	4.5
Operating Supply Voltage-Max (V)	5.5
Maximum Power Dissipation (mW)	1000
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tube
Standard Package Method	SOP
Pin Count	56
Original Package	SSOP
Terminal Form	Surface Mount
Package Height	2.79(Max) - 0.2(Min)
Package Length	18.54(Max)
Package Width	7.59(Max)
PCB changed	56
